6m Backlit SEG Lightbox

6m Backlit SEG Lightbox

Our Backlit SEG Lightbox Displays system is designed from the ground up with simplicity, portability and ease of use in mind. The brightness and evenly spread LED backlit light is what delivers the impact and provides the professional results. It is quick to assemble, ultra-bright and stays in pristine order when transported and stored.

View full details

Overview

Our free-standing Backlit SEG Lightbox Displays consist of an heavy duty aluminium extrusion frame kit, and a SEG tension fabric graphic. The frame is 100mm thick and comes with stabilising feet.

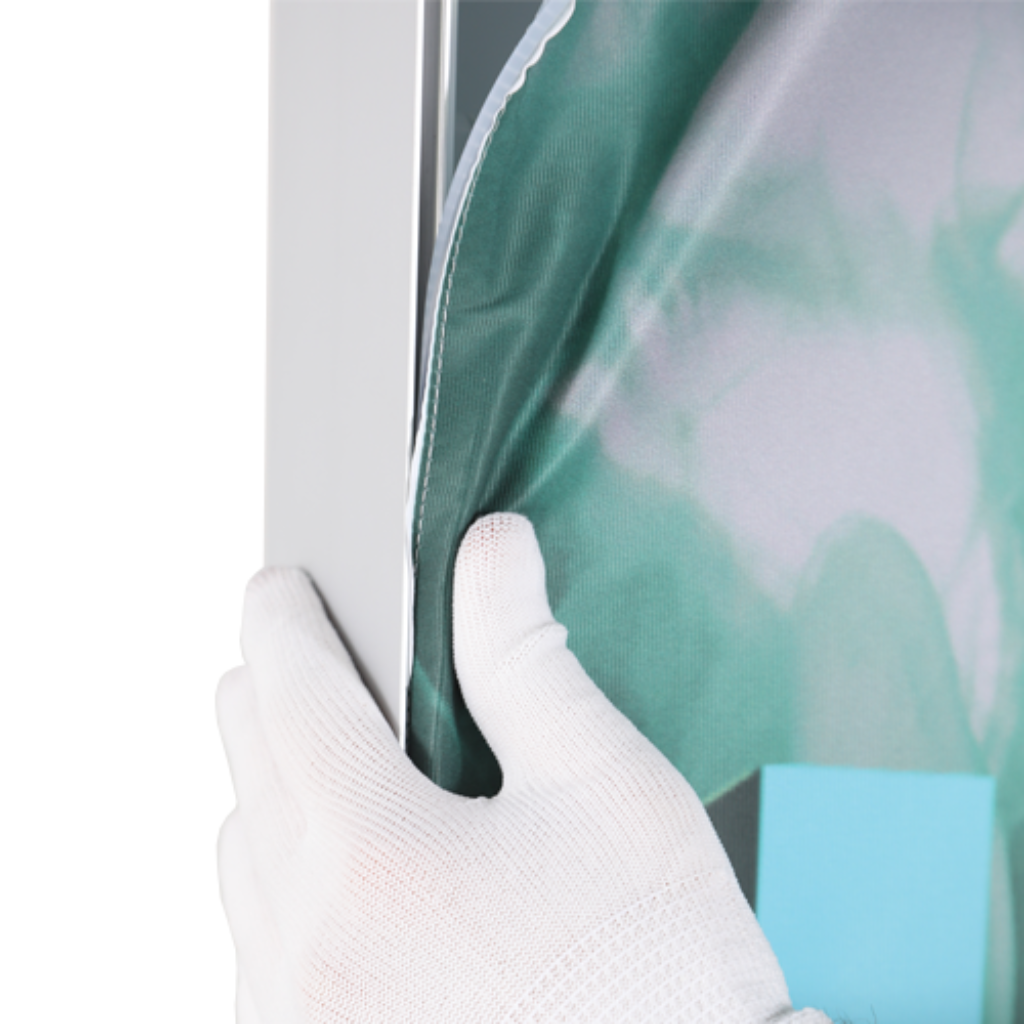

The fabric graphic is printed using a dye-sublimation process onto 260gsm Backlit Polyester. This process gives the image great vibrancy and is finished with a silicone edging (kedar). The graphic is then slotted into the aluminium channel and tensioned around the edge.

The result is a beautifully-finished, vibrant and seamless solution. Perfect for store all manner of applications including displays and exhibitions. Graphics are easily replaceable by existing ground staff, negating the need for skilled installers.

Our Free-Standing Backlit SEG Lightbox Displays are double-sided and as such are provided with two graphics as standard. You can have the same message both sides or have two different promotional graphics.

Click here for installation video

Click here for installation manual

Specifications

Application Freestanding Single Sided Light Box

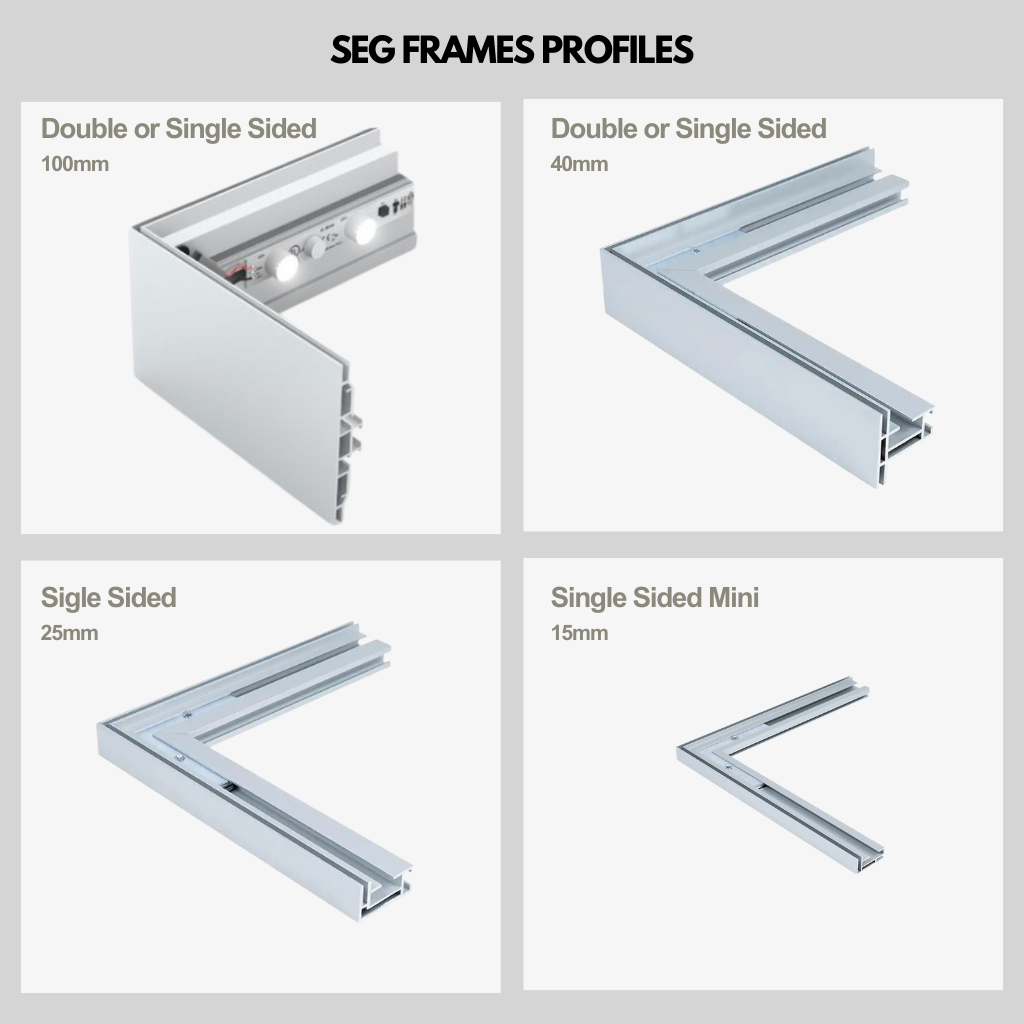

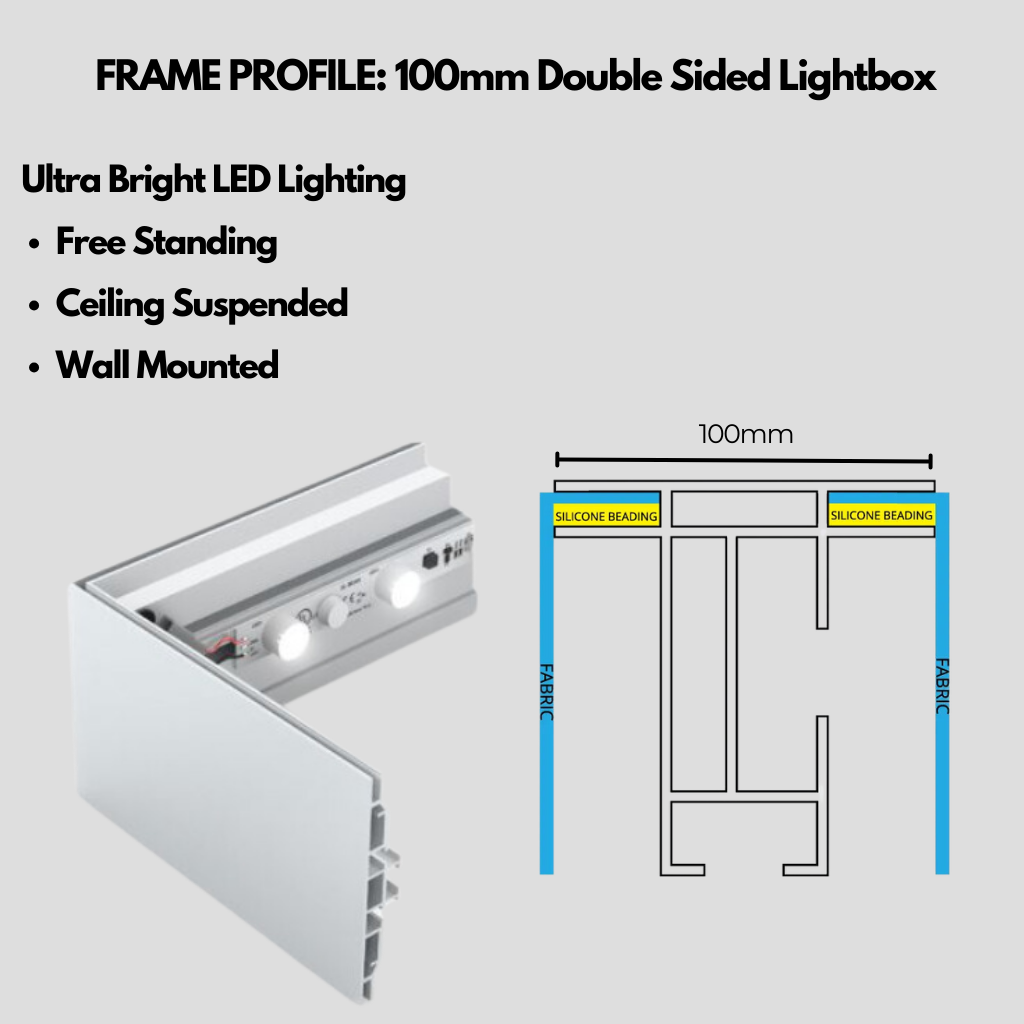

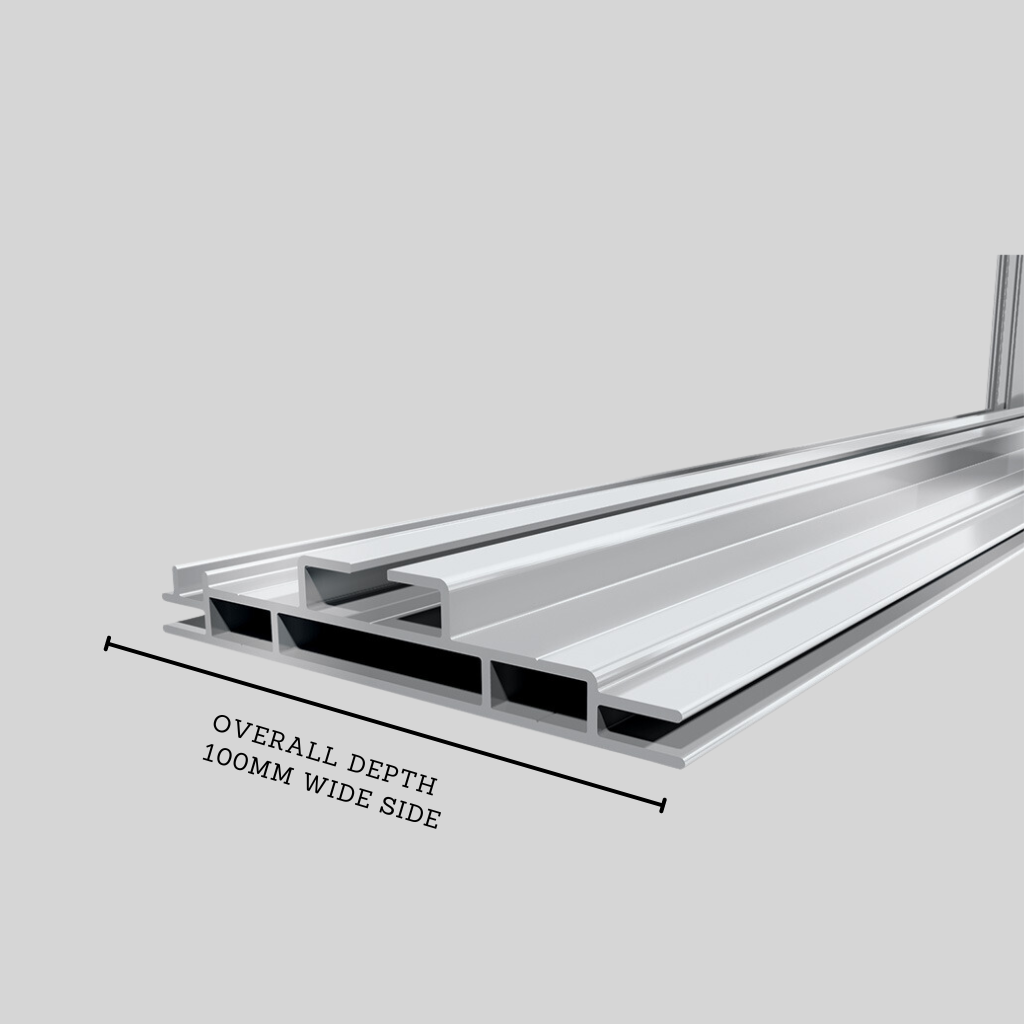

Profile: 100mm Thick with connectors
Lights: Yes
Foot: Set of 3
Single Sided Print: 1 x Single sided Dye Sublimation Fabric print + White fabric back cover
Double Sided Print: 2 x Single sided Dye Sublimation Fabric print
Print Finish Silicone Edge Graphics, ready to install

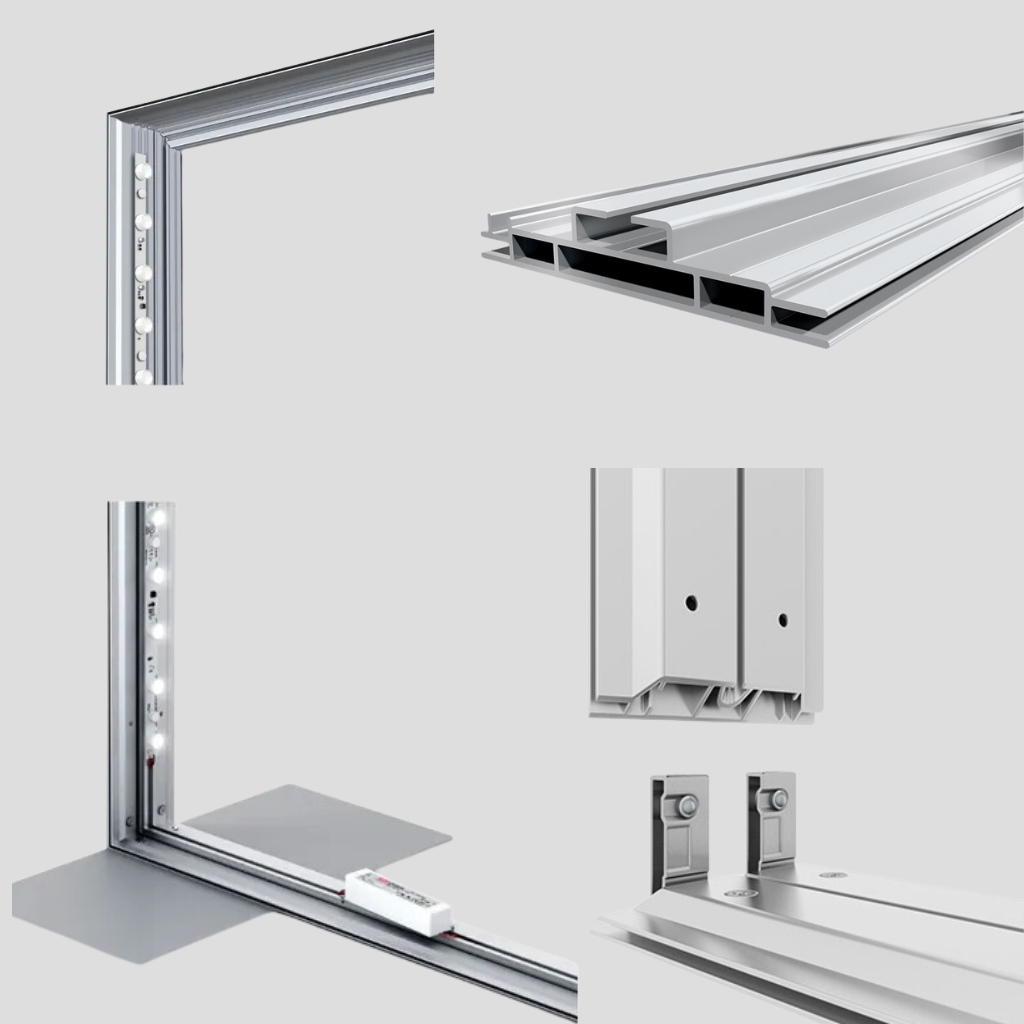

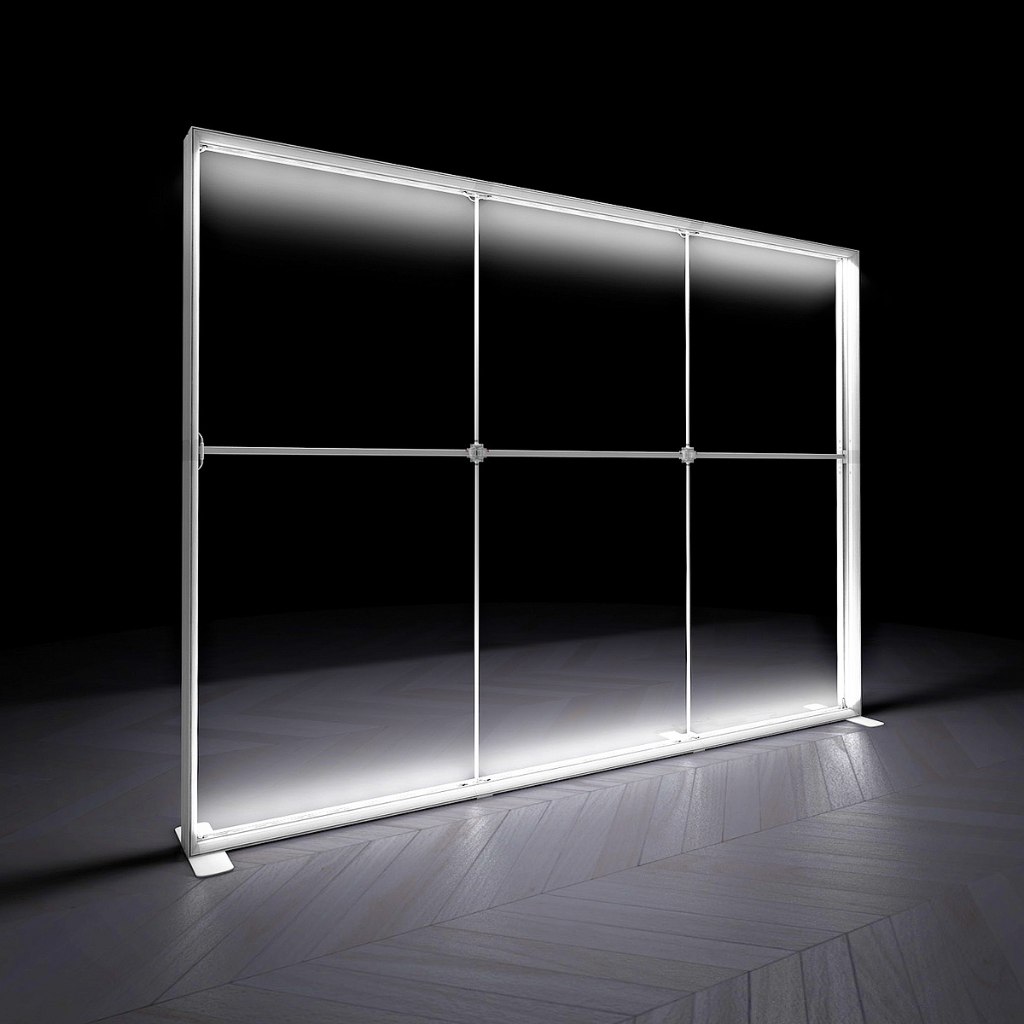

The Profile 100, Single or Double-sided light box utilises ultra bright SEG Frame LED Modules, which attach to the light box extrusion with simple twist locks and plugs together to create bright, even lighting. Assembly is quick and easy and because there are no bulky back panels, these light boxes break down into easy storage and shipping box saving space and huge transport cost.

Templates
