The constraint

The head of the large box had to sit inside a 600mm ceiling recess. At 7.5 metres wide and 3.37 metres high, the frame that carries that span safely wants depth — and there were 600 millimetres to put it in.

The window set the size, not a product range. And it stands on a public showroom floor, so structure was not the place to save weight.

We measured on site before we quoted, then chose the profile against span versus depth. We took the heavier solid frame and absorbed the weight penalty rather than compromise the structure — six installers lifted the assembled frame and fed it into the recess by hand.

  • 7,500 × 3,370mm

    The large face. Full window coverage — dimensions taken off the site, not chosen from a range.

  • 600mm

    The ceiling recess the frame head had to live in — where a span this size wants depth.

  • 12 segments · 8 LED curtains

    Assembled on site in sequence, every vehicle cleared from the floor for the install window.

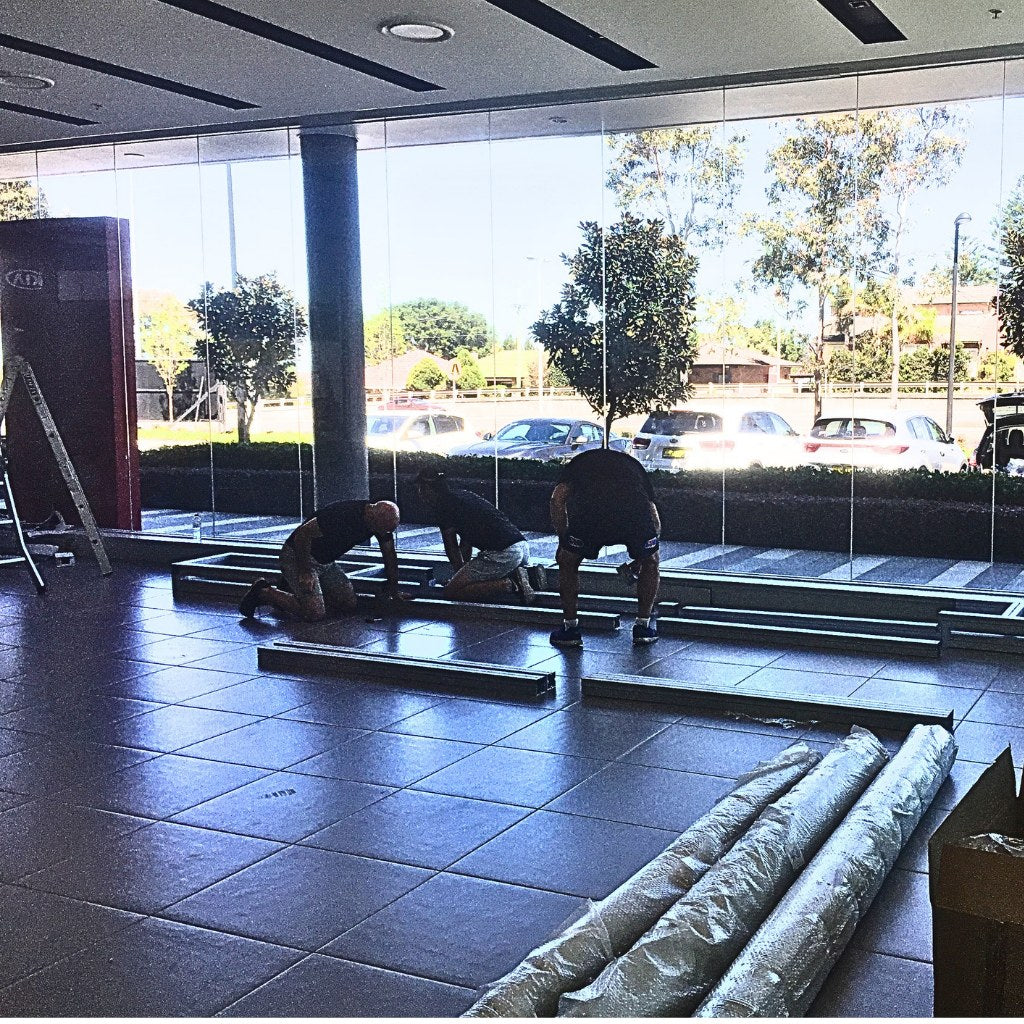

Installation crew assembling numbered lightbox frame segments on the cleared showroom floor, Kia Australia head office

The frame was the easy half.

On a normal lightbox the fabric goes onto the frame at ground level and the whole assembly is lifted. At 7.5 × 3.37 metres we would not risk it — a graphic torn during the lift is a reprint and a lost day.

So the frame went up first, and the fabric went on afterwards, at height, into a 600mm gap with almost no clearance above.

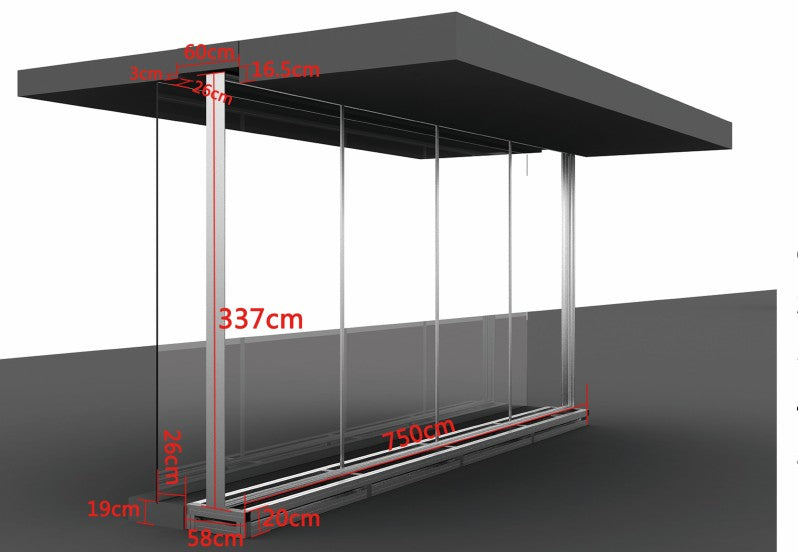

Set-out diagram from the installation manual: 750cm x 337cm face into a 60cm ceiling recess

750 × 337, into 60

The set-out from the install manual — the three numbers the whole engineering decision hung on.

The fabric method went to site with it: seat the first corner and reference everything off it, then work the points in sequence around the face. Four crew minimum — two on stepladders at the top edge, two at the bottom. The fabric is never folded at any stage; a crease in a backlit face is permanent. Every wrinkle is adjusted out before the crew stands down.

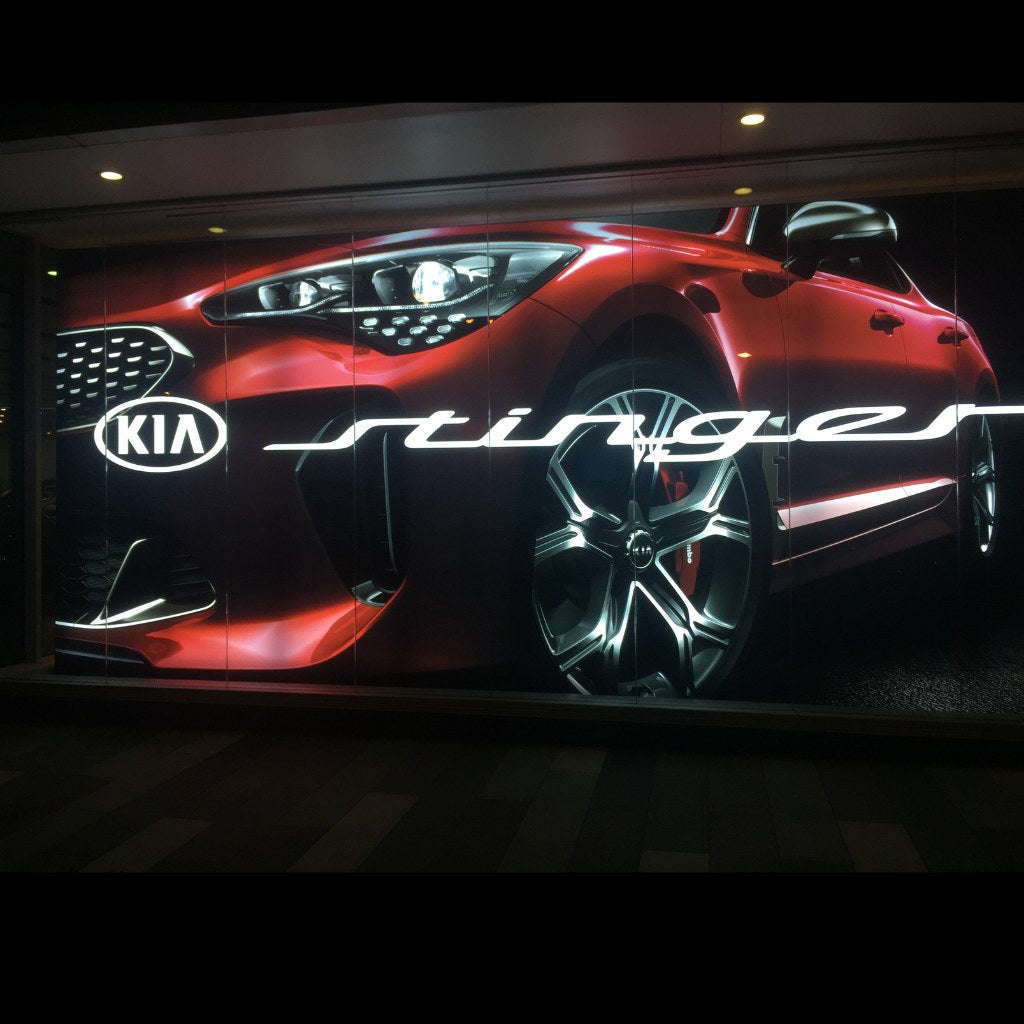

Backlit Kia Stinger lightbox display reading through the showroom glazing at night

Read from the street

Both boxes reading through the glazing after dark — the job the display was bought to do. The building set the size; the display fills it edge to edge.

Frame up to lights on — 23 seconds

Specification

Faces: 7,500 × 3,370mm and 3,700 × 3,370mm
Ceiling recess: 600mm · Base: 580mm
Frame: 12 numbered segments
Lighting: 8 LED curtains, 8 transformers

Every install ships with the manual — dimensioned set-out, segment map, connector types, carton labelling, LED wiring and crew requirements. The client's own team can re-fit a graphic when the campaign changes, and the documentation stays in the building long after the crew has gone.
