3x3 SEG Backlit Lightbox SKY Arch Exhibition Stand Display Kit

3x3 SEG Backlit Lightbox Sky Arch Exhibition Stand Kit

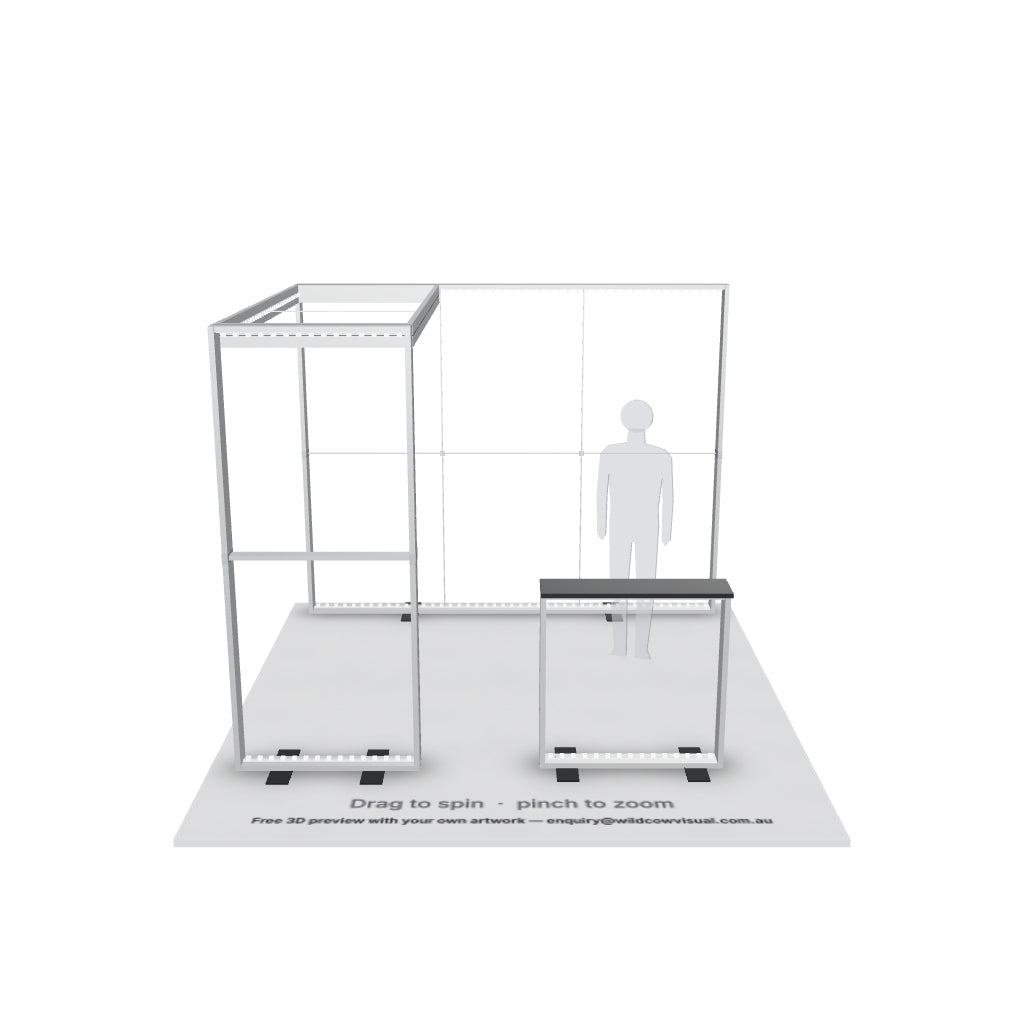

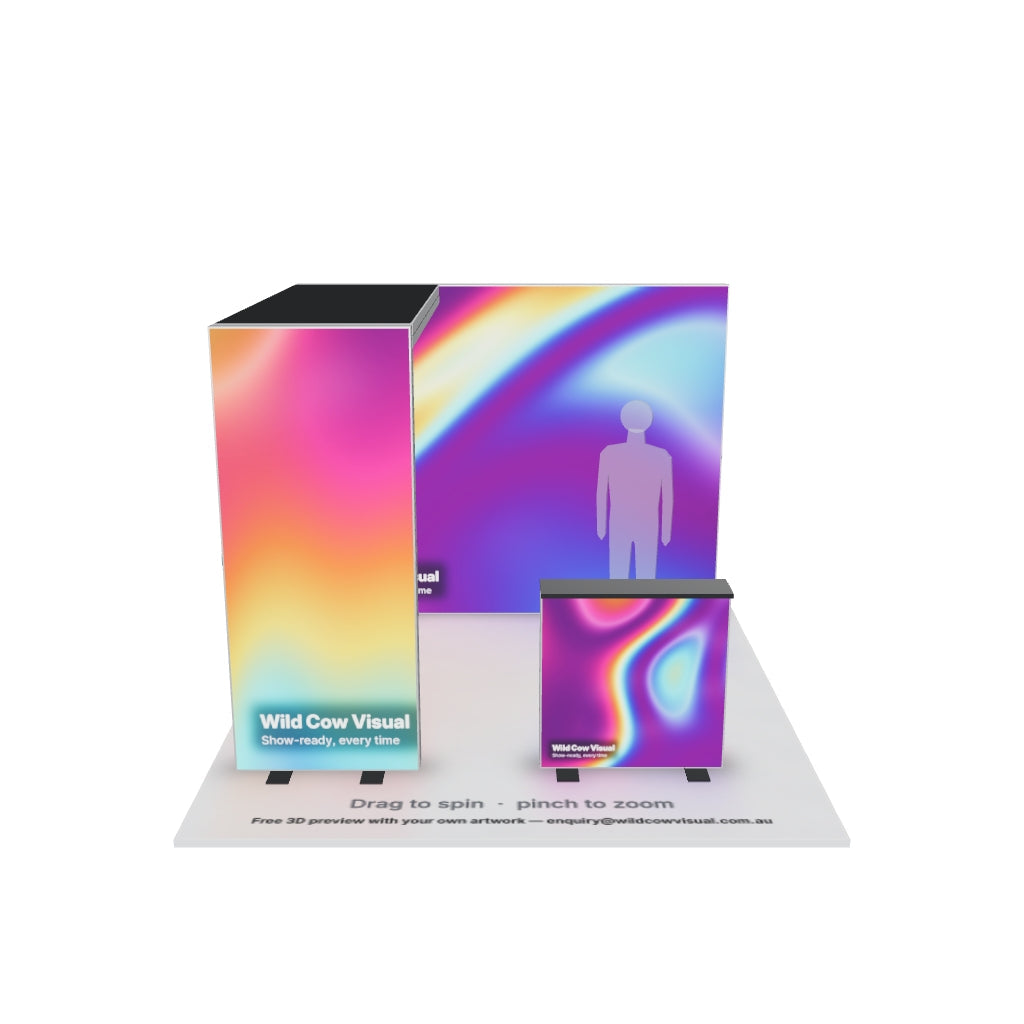

This 3m x 3m SEG Backlit Lightbox Freestanding Sky Arch Exhibition Kit is both visually striking and practical. Configured as a Sky Arch, this kit includes a 3000mm(W) back wall, a 1000mm(W) front upright, and a 1000mm(W) overhead sky panel, each 2400mm(H).

These high-impact fabric display stands use integrated LED lighting to highlight your advertising and branding. Ideal for exhibitions, trade shows, shell schemes and marketing events. Designed to be portable, modular, easy to store and simple to assemble without tools; making them the ideal portable backlit exhibition stand solution.

Available separately is a 1000mm x 1000mm SEG Lightbox Counter which you can purchase at an additional cost to add a finishing touch to your display.

3 x 3 SEG Sky Arch Backlit Lightbox Exhibition Stand Display Kit Includes:

• 1 set 3000mm (w) x 2400mm (h) Lightbox (back wall)
• 1 set 1000mm (w) x 2400mm (h) Lightbox (front upright)
• 1 set 1000mm (w) x 2400mm (h) Lightbox (overhead sky panel)
• 3 or 5 Printed SEG Fabric Graphics — single-sided order: 3; double-sided order: 5 (the overhead sky panel is single-sided only)
• Blackout Fabric for Rear Panels (For Single Sided Panels Only)
• 2x Standard Stabilising Feet for each frame
• 2x Half Feet (Left and Right Side)
• 1 set Sky Arch Connectors
• 1x Premium Wheeled Transport Case with Foam Compartments (Per Lightbox)
• 1x SEG Backlit Counter (Optional)

Backlit LED Banner Assembly:
The panels that make up this Sky Arch kit use quality LEDs. These LED lights are pre-installed into the 120mm-deep frame profile and offer bright but evenly diffused lighting for a cost-effective and energy-efficient LED exhibition stand. Operating on a simple plug-and-play operation, these lightboxes for exhibitions can be installed and used by anyone.

Installation and transportation is very easy. Each of the lightbox panels is supplied with its own padded Premium wheeled transport case with wheels and trolley handles. Each piece of the frame is number-coded for ease – simply match the numbers and click the pieces together using the push-fit mechanisms. No tools are required. Connect the lighting cables and hang your custom printed SEG graphics to complete assembly.

Each LED lightbox panel includes an Australian two-pin plug per light panel, as well as a 24V 200W driver. The 3m back wall uses two power packs and each 1m panel uses one, for 4 power packs in total to run.

Custom Fabric Lightbox Printing:
The overhead sky panel is single-sided only (its top faces the ceiling); the 3m back wall and 1m front upright print single- or double-sided to your choice. Single-sided panels have one printed front graphic with a blackout plain black fabric reverse that seals the frame for even backlighting; double-sided panels are printed front and rear. Replacement lightbox graphics can be purchased at any time allowing you to update your branding quickly and easily.

Free Artwork Check on every print file, we never print without your approval.

Why Choose the 3x3 SEG Backlit Lightbox Sky Arch Exhibition Stand Display Kit?

• 3m x 3m Sky Arch — lit back wall, front upright and overhead sky panel
• Overhead sky panel is single-sided; back wall and upright print single or double to your choice
• Single-sided panels have a blackout black blank cover reverse graphic
• Double-sided panels are printed front and rear
• Includes a 3m back wall, a 1m front upright and a 1m overhead sky panel
• Can be linked or used as individual LED banners
• Optional SEG Lightbox Exhibition Counter
• Guarantees your brand stands out
• Pre-installed LED Lighting for plug-and-play use
• Premium wheeled transport cases with protective foam inserts
• Power cables included
• 12-month hardware warranty

For additional information on SEG Backlit Lightbox Display For Exhibitions, please call 1300 197 088 or contact us.

View the full Wild Cow Visual range of Exhibition Lightbox Displays .

What's included in the 3×3 Sky Arch Kit?

The kit includes three freestanding backlit lightboxes — a 3m-wide back wall, a 1m-wide front upright, and a 1m-wide overhead sky panel — along with the Sky Arch connectors that mount the overhead panel. It also comes with stabilising feet, custom-printed SEG fabric graphics, blackout fabric for the rear of single-sided panels, and a premium wheeled transport case for each lightbox. An optional 1m × 1m SEG counter is also available.

How are the Sky Arch graphics printed?

The overhead sky panel is single-sided only — its top faces the ceiling, so there's nothing to see up there. The 3m back wall and the 1m front upright print single- or double-sided to your choice. So a single-sided order comes with 3 printed graphics (back wall, upright, sky panel), and a double-sided order comes with 5 (back wall ×2, upright ×2, sky panel ×1).

What booth does it fit, and what are the dimensions?

It's built for a 3×3 (3m) booth as a Sky Arch. The 3m back wall and 1m front upright stand vertically at 2.4m high on a 120mm-deep frame, with a 1m overhead sky panel mounted above to form the lit archway. Total weight is 65kg (80kg with the counter).

How does the Sky Arch join — is it seamless?

The overhead sky panel mounts above the back wall and front upright using the Sky Arch connectors, which securely hold the overhead 'ceiling' lightbox in place to form the arch. The SEG graphics sit flush in each frame, so it reads as one continuous lit structure, not separate panels bolted together.

Does the single-sided include a blackout fabric for the rear panel?

Yes — every single-sided SEG lightbox we supply includes a blackout rear fabric at no extra cost. While many competitors charge extra for a blackout panel or default to a standard white fabric that lets light leak out, we include it as standard. Our premium dual-sided rear fabric serves two important purposes:

• Maximum Brightness (Inward-Facing White): The inside of the rear panel is vibrant white to bounce LED light back through your front graphic, ensuring a brighter, more even illumination.
• Professional Finish (Outward-Facing Black): The outside of the rear panel is blackout black fabric to prevent light bleed, keeping your display looking clean and professional from behind.

Should I choose single-sided or double-sided printing?

Choose single-sided if the stand sits against a wall or shell scheme — you get a printed front and a blackout plain black fabric reverse that seals the frame for even backlighting. Choose double-sided for island or walkway positions where the back wall and upright are seen from both sides. Note the overhead sky panel is always single-sided, since its top faces the ceiling.

How is it powered — do I need an electrician?

No electrician needed. Every panel is pre-wired with 24V 200W LED drivers for Australian and New Zealand power (230–240V) and runs plug-and-play from a standard power point. Each 1m panel uses one power pack and the 3m back wall uses two — four power packs in total for this kit.

How is it transported and set up?

Each lightbox packs into its own Premium wheeled transport case with foam compartments. Setup is tool-free and takes two people: the frame sections are number-coded, so you match the numbers, push-fit the poles, connect the power cables, and press in the SEG graphics.

Can I rebrand it later or order replacement graphics?

Yes. The printed SEG fabric skins are fully replaceable, so you can rebrand for a new campaign or show by reordering just the graphics and keeping the same frame and cases — a fraction of the cost of a new stand.

Can you custom-size to meet strict exhibition venue requirements?

Yes. We can custom-size displays to meet your exhibition organiser's requirements. Many venues have strict size limits—for example, a 3×3m booth may require the display to be slightly under 3.0m wide. We can adjust the dimensions, such as manufacturing a 2.85m-wide display, to help ensure your stand complies with strict venue regulations and avoids installation issues.

Can it be used outdoors?

No — it's designed for indoor use only. The LED system and fabric graphics aren't built for weather or wind. Use it for exhibitions, trade shows, expos, showrooms and indoor events.

Do I get an artwork proof, and what warranty is included?

Every graphic is custom printed to your own artwork with a free artwork check — we send a proof and never print without your approval. The hardware is covered by a 12-month warranty on the frame, LEDs and drivers, with parts stocked in Australia.

The 3×3 Sky Arch kit sets up tool-free with two people. Follow these steps:

1. Unpack the cases. Each of the three lightboxes has its own wheeled case — lay out the number-coded frame sections, feet, drivers and your SEG graphics.
2. Build each frame. Match the numbers on the frame poles and push-fit them together to form the three lightbox frames. No tools required.
3. Fit the feet. Attach the stabilising and square feet to the back wall and front upright frames, using the left and right half-feet on the outer ends for a stable base.
4. Form the Sky Arch. Stand the 3m back wall and the 1m front upright, then mount the 1m overhead sky panel above using the Sky Arch connectors.
5. Connect the power. Plug each panel's 24V 200W driver into a standard Australian power point — each 1m panel uses one power pack and the 3m back wall uses two. Everything is pre-wired; just connect and switch on.
6. Fit the graphics. Press the silicone edge (welt) of each SEG fabric into the frame channel, working around the frame until it pulls tight and crease-free. Single-sided panels take a white reverse to seal the frame.
7. Position and finish. Move the stand into place and, if using, add the optional SEG counter.

Download the full install manual (PDF) →

Prefer to watch? See the step-by-step setup video in the panel below.
