6x3 SEG Backlit Lightbox SKY Arch Exhibition Stand Display Kit

6x3 SEG Backlit Lightbox Sky Arch Exhibition Stand Kit

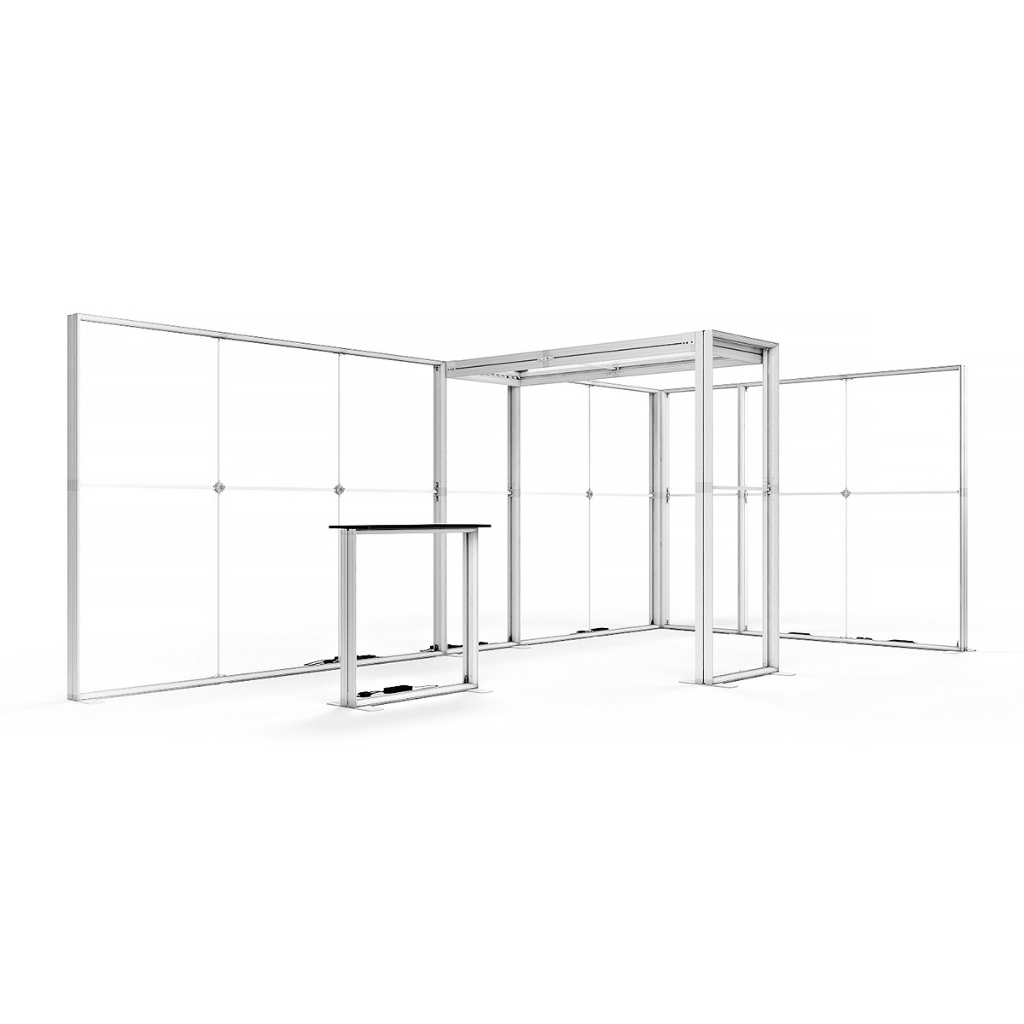

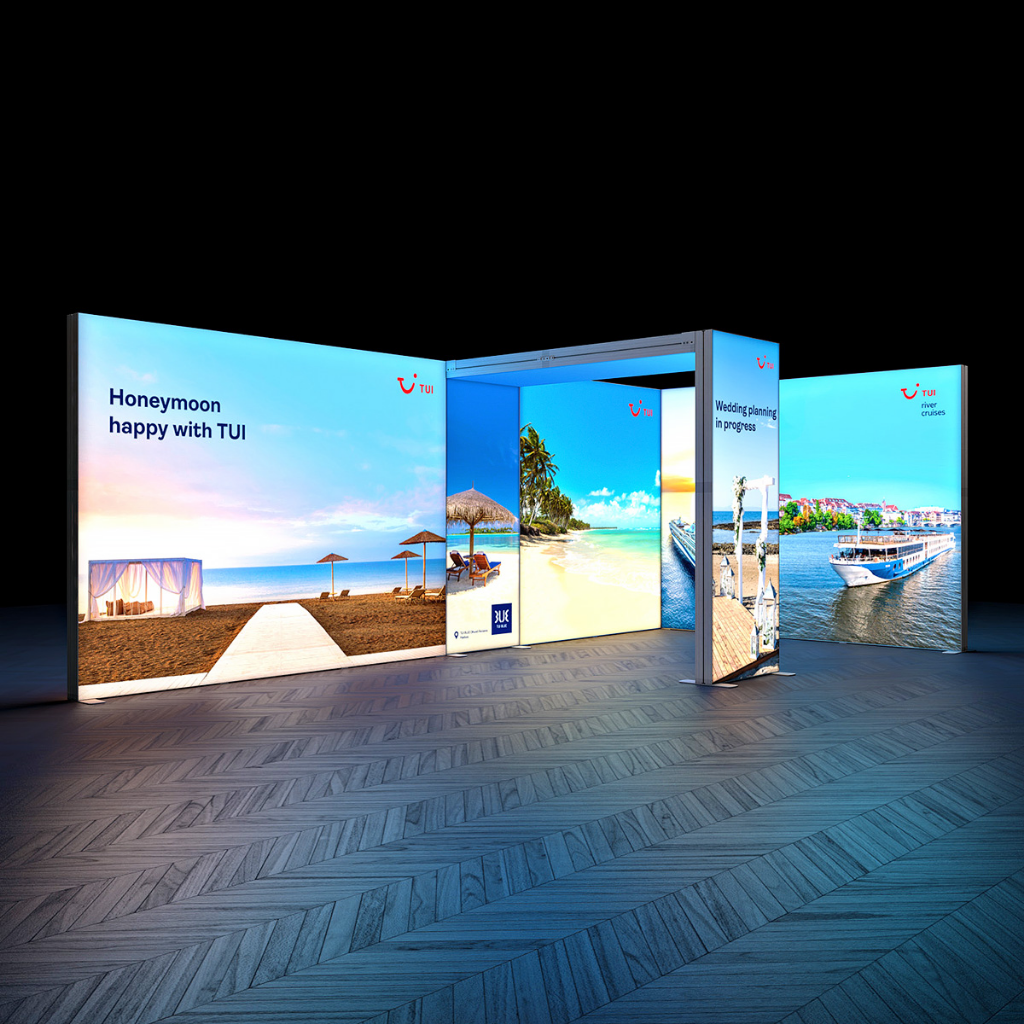

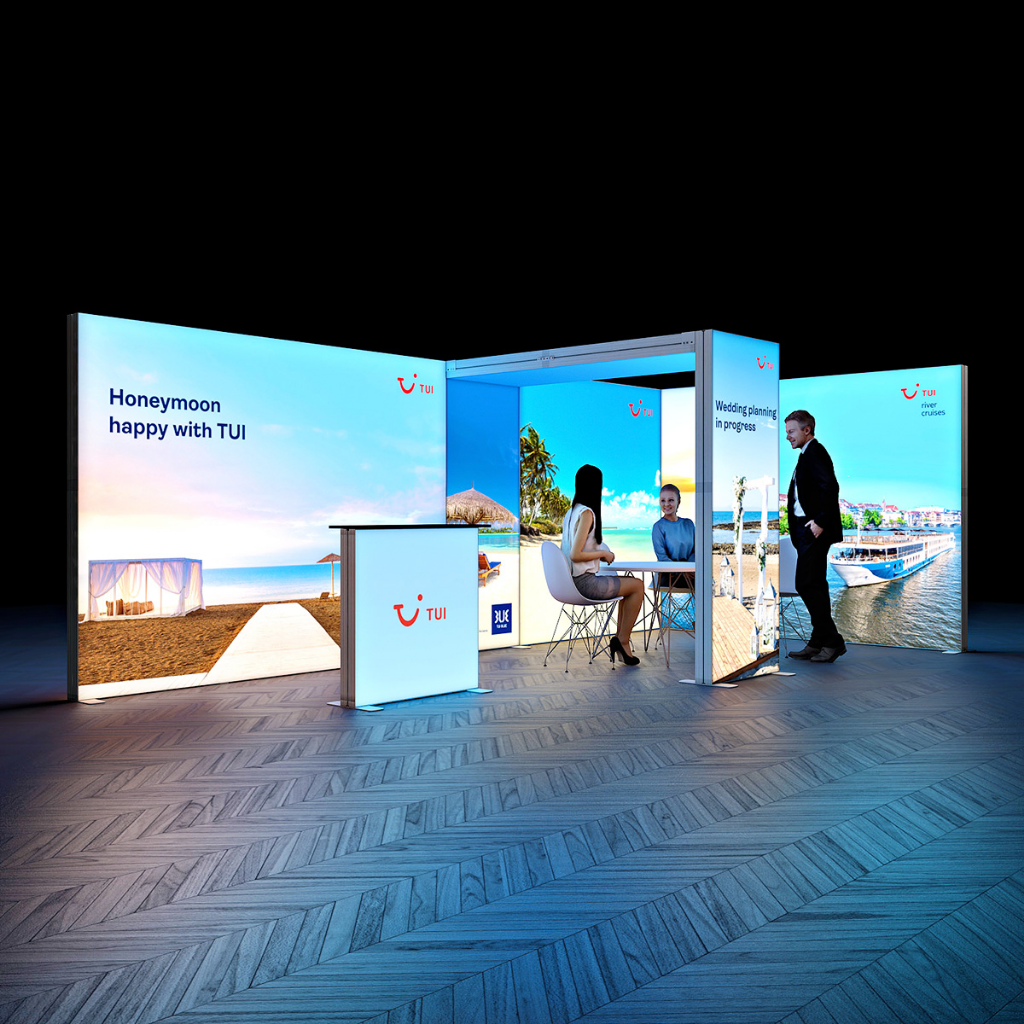

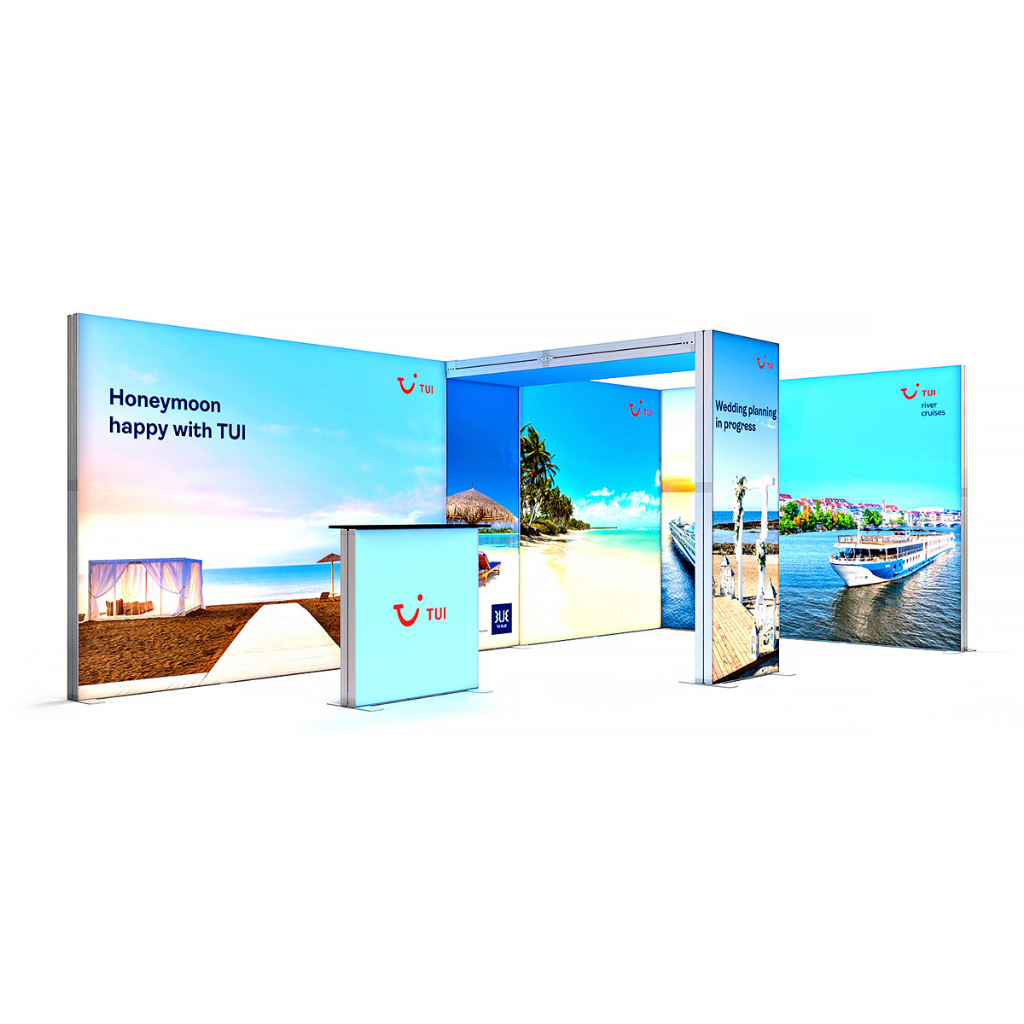

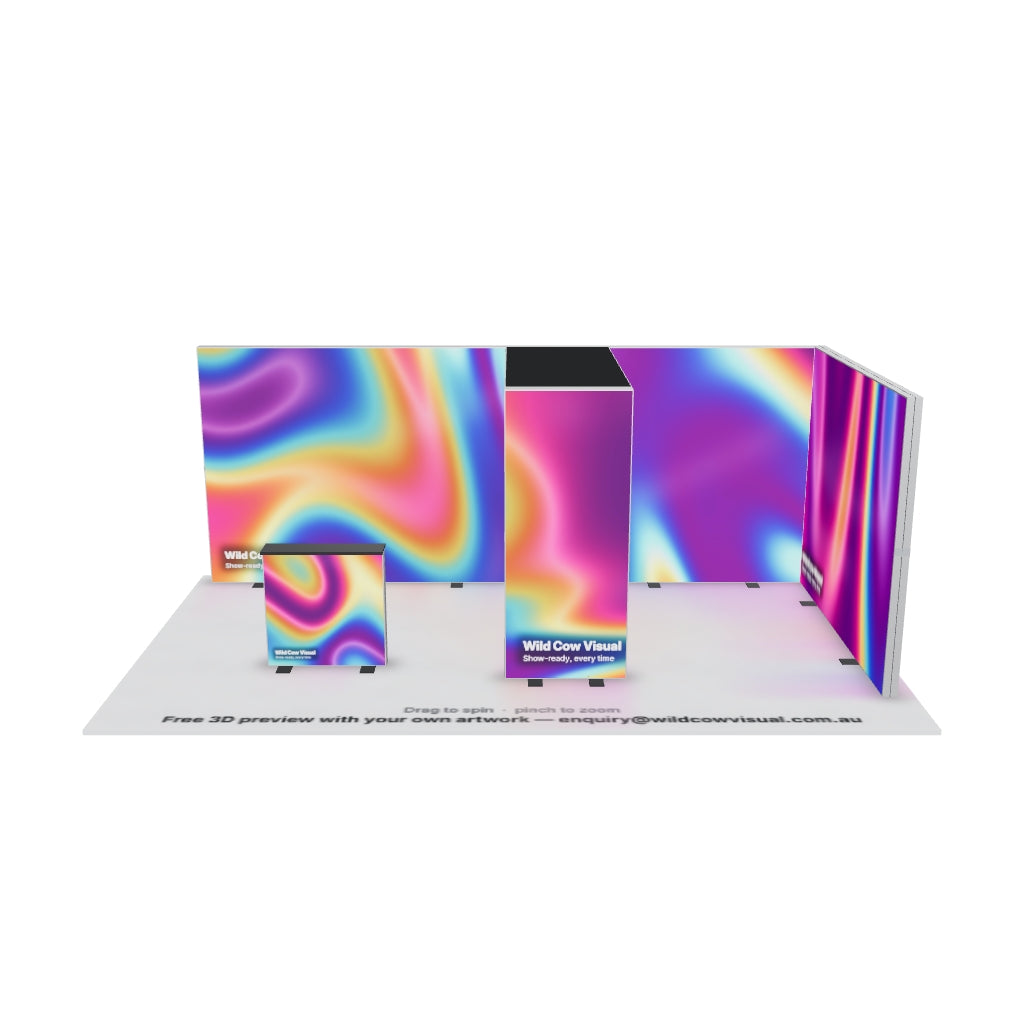

This 6m x 3m SEG Backlit Lightbox Freestanding Sky Arch Exhibition Kit is both visually striking and practical — an L-shaped lightbox wall with a lit walk-through arch built in. The kit includes three 850mm(W), two 3000mm(W) and one 2000mm(W) SEG Backlit Lightbox Displays, each 2400mm(H).

These high-impact fabric display stands use integrated LED lighting to highlight your advertising and branding. Ideal for exhibitions, trade shows, shell schemes and marketing events. Designed to be portable, modular, easy to store and simple to assemble without tools; making them the ideal portable backlit exhibition stand solution.

Built for strength: rather than one wide 6m back-wall frame — which flexes and offers less support — the back wall is built from a 3m and a 2m panel with a narrow 0.85m panel where the arch connects. That narrower panel braces the arch join for a stronger, more stable stand.

Available separately is a 1000mm x 1000mm SEG Lightbox Counter which you can purchase at an additional cost to add a finishing touch to your stand.

6 x 3 SEG Sky Arch Backlit Lightbox Exhibition Stand Display Kit Includes:

• 3 set 850mm (w) x 2400mm (h) Lightbox (arch: front, overhead sky & back)
• 2 set 3000mm (w) x 2400mm (h) Lightbox (back wall & L return)
• 1 set 2000mm (w) x 2400mm (h) Lightbox (back wall)
• Printed SEG Fabric Graphics — single-sided order: 6 printed + 7 blackout backs; double-sided order: 11 printed + 1 blackout back (the overhead sky panel is single-sided only)
• 12x Universal Angle Connectors
• 2x Hidden L-Shape Connectors (top & bottom, at the L corner)
• 1 set Sky Arch Connectors
• 2x Pair of Half Feet
• 3x Pair of Square Feet
• 1x Premium Wheeled Transport Case with Foam Compartments (Per Lightbox)
• 1x SEG Backlit Counter (Optional)

Backlit LED Banner Assembly:

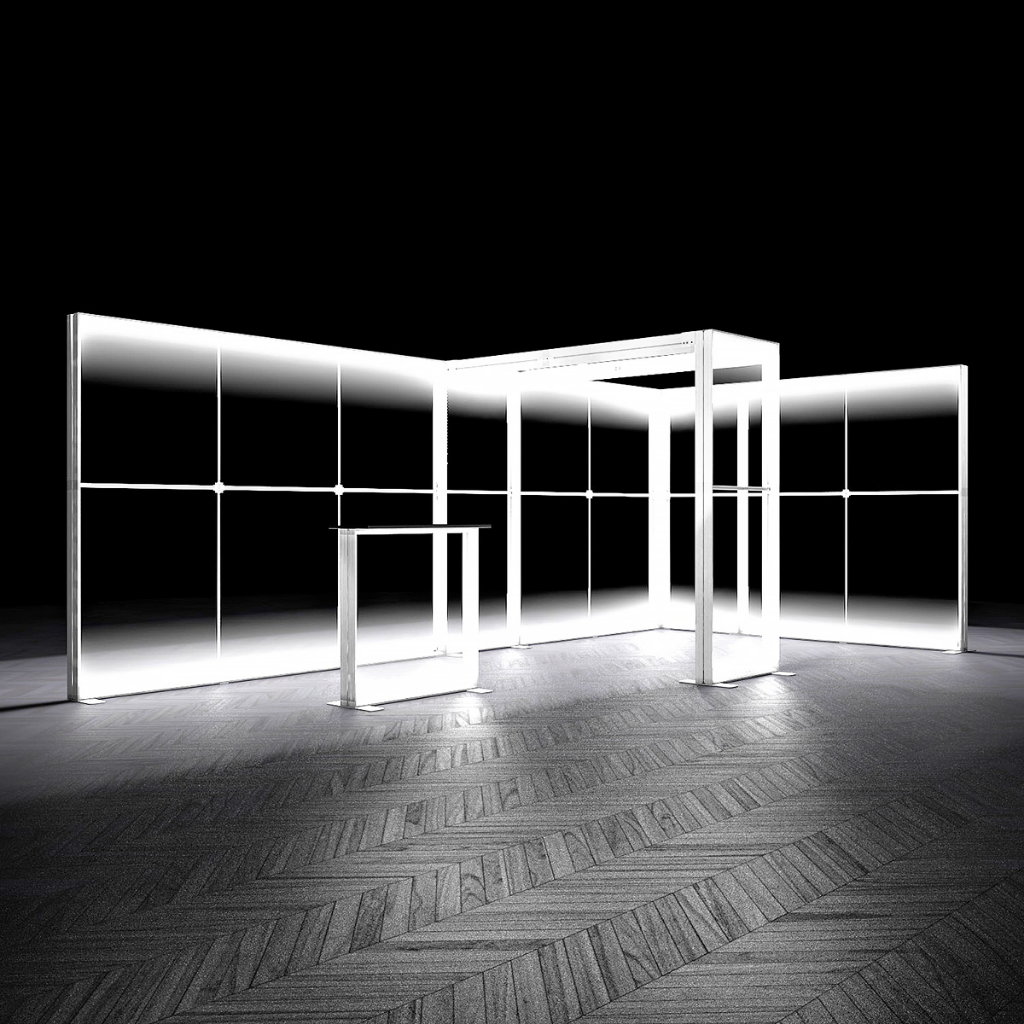

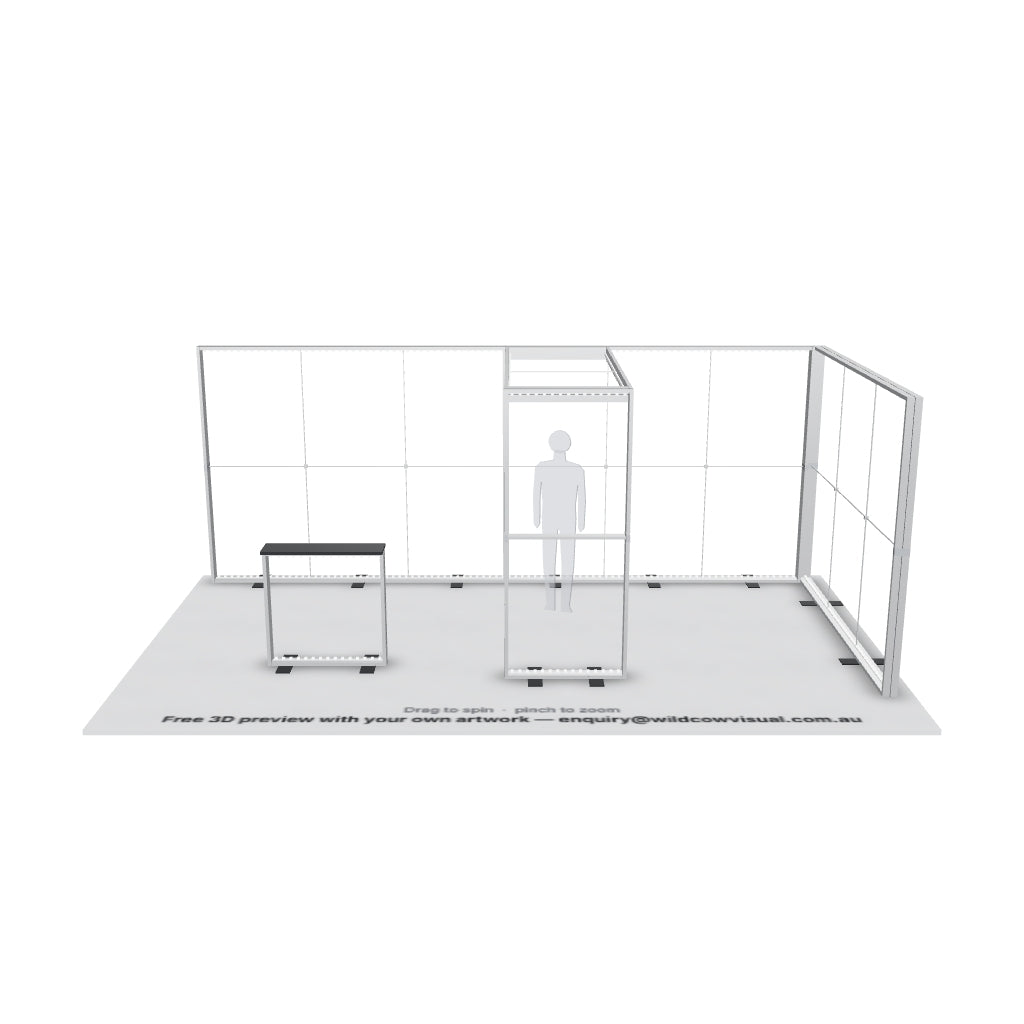

The panels that make up this Sky Arch kit use quality LEDs. These LED lights are pre-installed into the 120mm-deep frame profile and offer bright but evenly diffused lighting for a cost-effective and energy-efficient LED exhibition stand. Operating on a simple plug-and-play operation, these lightboxes for exhibitions can be installed and used by anyone.

Installation and transportation is very easy. Each of the lightbox panels is supplied with its own padded Premium wheeled transport case with wheels and trolley handles. Each piece of the frame is number-coded for ease – simply match the numbers and click the pieces together using the push-fit mechanisms. No tools are required. Connect the lighting cables and hang your custom printed SEG graphics to complete assembly.

Each LED lightbox panel includes an Australian two-pin plug per light panel, as well as a 24V 200W driver. Each 0.85m panel uses one power pack and each 2m and 3m panel uses two, for 9 power packs in total to run.

Custom Fabric Lightbox Printing:
The overhead sky panel is single-sided only (its top faces the ceiling); the other panels print single- or double-sided to your choice. Single-sided panels have one printed front graphic with a blackout plain black fabric reverse that seals the frame for even backlighting; double-sided panels are printed front and rear. Replacement lightbox graphics can be purchased at any time allowing you to update your branding quickly and easily.

Free Artwork Check on every print file, we never print without your approval.

Why Choose the 6x3 SEG Backlit Lightbox Sky Arch Exhibition Stand Display Kit?

• 6m x 3m L-shaped stand with a lit walk-through Sky Arch gateway
• Reinforced back wall — narrow 0.85m panel braces the arch join for extra stability
• Overhead sky panel is single-sided; the other panels print single or double to your choice
• Single-sided panels have a blackout black blank cover reverse graphic
• Double-sided panels are printed front and rear
• Includes six freestanding lightboxes plus Sky Arch connectors
• Can be linked or used as individual LED banners
• Optional SEG Lightbox Exhibition Counter
• Guarantees your brand stands out
• Pre-installed LED Lighting for plug-and-play use
• Premium wheeled transport cases with protective foam inserts
• Power cables included
• 12-month hardware warranty

For additional information on SEG Backlit Lightbox Display For Exhibitions, please call 1300 197 088 or contact us.

View the full Wild Cow Visual range of Exhibition Lightbox Displays .

What's included in the 6×3 Sky Arch Kit?

The kit includes six freestanding backlit lightboxes — three 0.85m-wide panels (the arch: front upright, overhead sky panel and back), two 3m-wide panels (back wall and L return) and one 2m-wide panel (back wall) — along with the Sky Arch connectors, Universal Angle Connectors and hidden L-shape connectors (top and bottom) at the L corner. It also comes with stabilising feet, custom-printed SEG fabric graphics, blackout fabric for the rear of single-sided panels, and a premium wheeled transport case for each lightbox. An optional 1m × 1m SEG counter is also available.

Why does the back wall use a narrow 0.85m panel?

A single 6m-wide frame flexes and offers less support. So the back wall is built from a 3m and a 2m panel with a narrow 0.85m panel where the arch connects — the narrower panel braces the arch join, giving a stronger, more stable stand.

How are the Sky Arch graphics printed?

The overhead sky panel is single-sided only — its top faces the ceiling, so there's nothing to see up there. The other panels print single- or double-sided to your choice. A single-sided order comes with 6 printed graphics and 7 blackout backs; a double-sided order comes with 11 printed graphics and 1 blackout back.

What booth does it fit, and what are the dimensions?

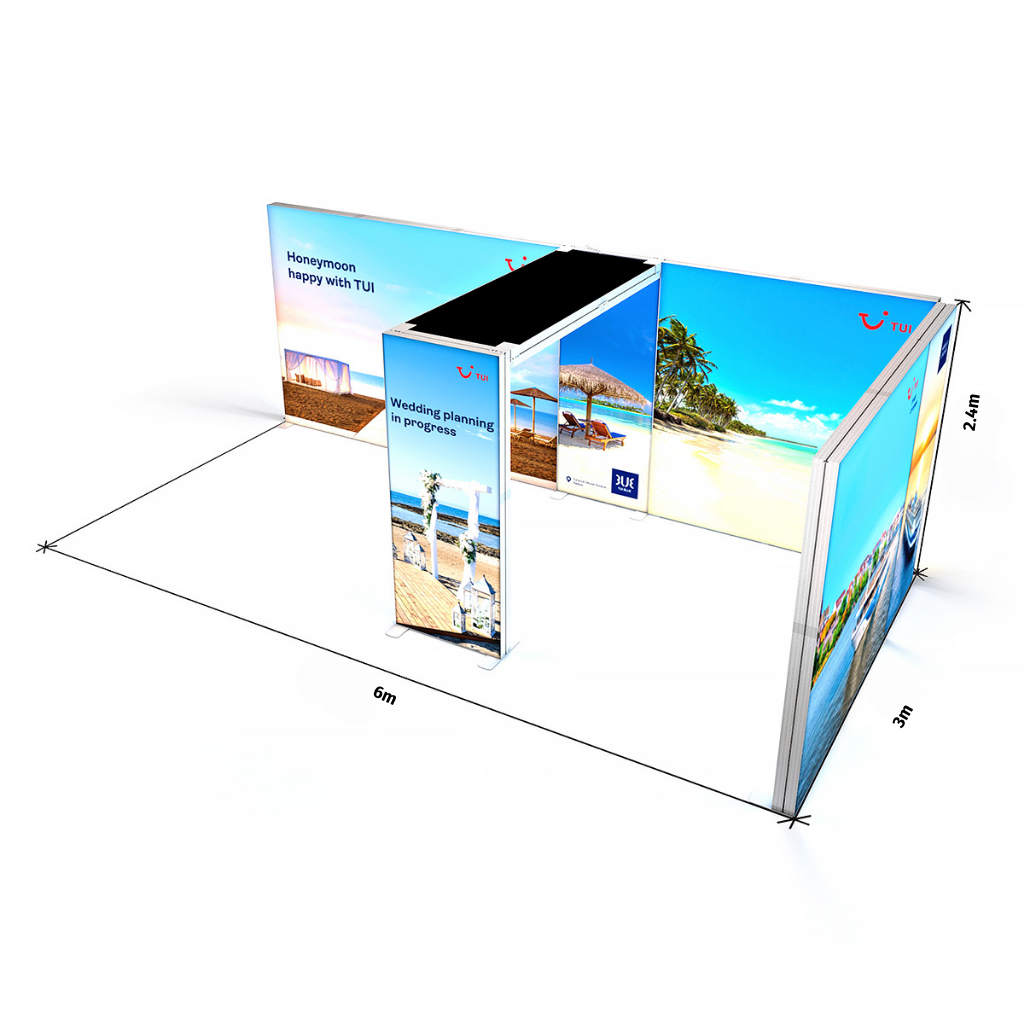

It's built for a 6×3 (6m × 3m) booth as an L-shaped stand with a walk-through Sky Arch. The back wall runs about 6m (a 3m + 0.85m + 2m run) with a 3m return, 2.4m high on a 120mm-deep frame, and the arch juts forward with a front upright and an overhead sky panel. Total weight is 138kg (155kg with the counter).

How does the Sky Arch join — is it seamless?

The wall panels lock side-by-side with Universal Angle Connectors, the L corner is braced by hidden L-shape connectors (top and bottom), and the overhead sky panel mounts above using the Sky Arch connectors. The SEG graphics sit flush in each frame, so it reads as one continuous lit structure, not separate panels bolted together.

Does the single-sided include a blackout fabric for the rear panel?

Yes — every single-sided SEG lightbox we supply includes a blackout rear fabric at no extra cost. While many competitors charge extra for a blackout panel or default to a standard white fabric that lets light leak out, we include it as standard. Our premium dual-sided rear fabric serves two important purposes:

• Maximum Brightness (Inward-Facing White): The inside of the rear panel is vibrant white to bounce LED light back through your front graphic, ensuring a brighter, more even illumination.
• Professional Finish (Outward-Facing Black): The outside of the rear panel is blackout black fabric to prevent light bleed, keeping your display looking clean and professional from behind.

Should I choose single-sided or double-sided printing?

Choose single-sided if the stand sits against a wall or shell scheme — you get a printed front and a blackout plain black fabric reverse that seals the frame for even backlighting. Choose double-sided for island or walkway positions where the walls are seen from both sides. Note the overhead sky panel is always single-sided, since its top faces the ceiling.

How is it powered — do I need an electrician?

No electrician needed. Every panel is pre-wired with 24V 200W LED drivers for Australian and New Zealand power (230–240V) and runs plug-and-play from a standard power point. Each 0.85m panel uses one power pack and each 2m and 3m panel uses two — nine power packs in total, all included.

How is it transported and set up?

Each lightbox packs into its own Premium wheeled transport case with foam compartments. Setup is tool-free: the frame sections are number-coded, so you match the numbers, push-fit the poles, connect the power cables, and press in the SEG graphics.

Can I rebrand it later or order replacement graphics?

Yes. The printed SEG fabric skins are fully replaceable, so you can rebrand for a new campaign or show by reordering just the graphics and keeping the same frame and cases — a fraction of the cost of a new stand.

Can you custom-size to meet strict exhibition venue requirements?

Yes. We can custom-size displays to meet your exhibition organiser's requirements. Many venues have strict size limits—for example, a 6×3m booth may require the display to be slightly under 6.0m wide. We can adjust the dimensions, such as manufacturing a 5.85m-wide display, to help ensure your stand complies with strict venue regulations and avoids installation issues.

Can it be used outdoors?

No — it's designed for indoor use only. The LED system and fabric graphics aren't built for weather or wind. Use it for exhibitions, trade shows, expos, showrooms and indoor events.

Do I get an artwork proof, and what warranty is included?

Every graphic is custom printed to your own artwork with a free artwork check — we send a proof and never print without your approval. The hardware is covered by a 12-month warranty on the frame, LEDs and drivers, with parts stocked in Australia.

The 6×3 Sky Arch kit sets up tool-free. Follow these steps:

1. Unpack the cases. Each of the six lightboxes has its own wheeled case — lay out the number-coded frame sections, feet, drivers and your SEG graphics.
2. Build each frame. Match the numbers on the frame poles and push-fit them together to form the six lightbox frames. No tools required.
3. Fit the feet. Attach the stabilising and square feet to each frame, using the half-feet on the outer ends for a stable base.
4. Build the L-shaped wall. Line up the 3m + 0.85m + 2m back wall and the 3m return, locking the panels side-by-side with the Universal Angle Connectors and bracing the L corner with hidden L-shape connectors (top and bottom).
5. Form the Sky Arch. Stand the 0.85m front upright, then mount the 0.85m overhead sky panel across to the back wall using the Sky Arch connectors.
6. Connect the power. Plug each panel's 24V 200W driver into a standard Australian power point — each 0.85m panel uses one power pack and each 2m and 3m panel uses two. Everything is pre-wired; just connect and switch on.
7. Fit the graphics. Press the silicone edge (welt) of each SEG fabric into the frame channel, working around the frame until it pulls tight and crease-free. Single-sided panels take a white reverse to seal the frame.
8. Position and finish. Move the stand into place and, if using, add the optional SEG counter.

Download the full install manual (PDF) →

Prefer to watch? See the step-by-step setup video in the panel below.
