It's 7am in the morning. Your graphic is out of the tube, you've got one corner held up against the wall, and it's sitting about 60mm too tall.
There's no fixing it. The printer's closed, doors open in two hours, and your choices are gaffer tape or a bare wall after you've already spent twelve grand to be standing in this square.
This happens far more than anyone admits, and it happens for one reason. There is no single shell scheme size in Australia. Almost everyone orders as though there is.
The 3x3 is the default booth here. It's what most organisers sell first and what most first-time exhibitors get handed, and it's the size people plan for worst because they plan for the floor space and forget the walls are the part everyone actually sees.
So before you send anything to print, here's what you're really working with.
What the organiser gives you (and what they don't)
A standard shell scheme package in Australia usually includes three walls, a fascia sign with your company name on it, carpet, a couple of spotlights and a power outlet. That's it.
You supply everything else. Graphics, counter, furniture, anything that makes it look like your brand rather than a hospital corridor.
Worth knowing before you budget: at a major Sydney or Melbourne show, 9sqm of shell scheme space runs roughly $4,500 to $7,000 before you've printed a thing. Once you add insurance, power, freight, travel and staff time, most exhibitors land somewhere between $9,300 and $17,500 all-in for a single show.
Which is the real argument for getting the walls right. You've already spent five figures to stand in that square. Leaving it blank is the most expensive decision in the whole budget.
The measurement nobody will give you straight
Back to the 60mm that ruins your morning.
The three big stand contractors in Australia — ExpoNet, Harry the Hirer and Moreton Hire — all run slightly different systems, and organisers pick whoever they've got a deal with. Your 3m wall might be built from panels 950mm wide, or 960mm, or a full metre. Nobody tells you which, and every generic size chart online is quoting diffrently.

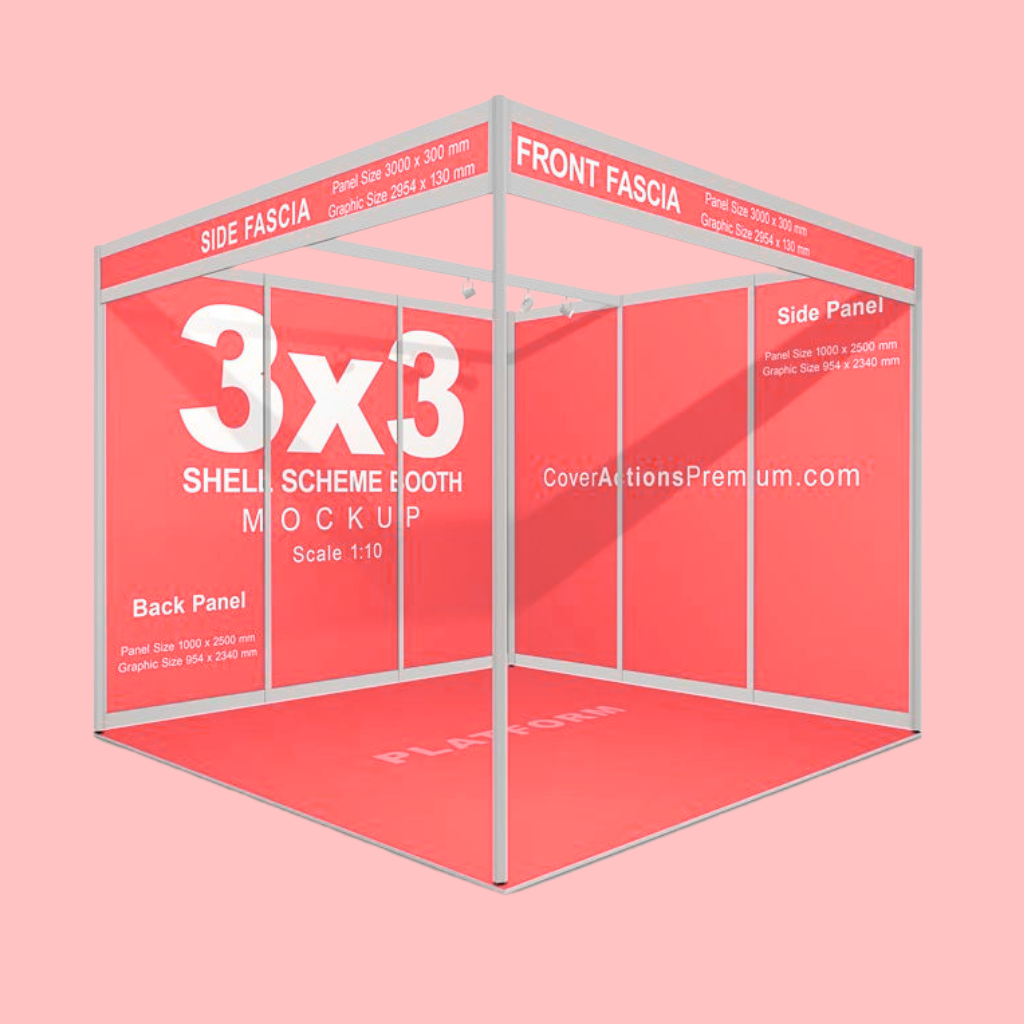

What's consistent is the outside envelope. A 3m wall is a 3m wall. The fascia header that runs above it is a standard 2990mm wide x 300mm high, which tells you the usable wall width underneath is right around 2.99m, not a clean 3000mm.
Below that, it splits into two families:
| System type | Wall height | Panel width | How graphics attach |
|---|---|---|---|
| Fabric/velcro walls (e.g. Harry the Hirer Corinthian) | 2.4m, 40mm thick | 1000mm | Velcro straight onto the fabric face — full 2.4m usable |
| Octanorm-style infill (S40, S100 and similar) | 2.4m frame | 950–970mm | Panel drops into the frame, or velcro over it — usable height drops to about 2280–2340mm |
That 60–120mm difference at the top and bottom is where artwork goes wrong. A graphic printed to 2400mm high on an Octanorm frame either won't seat properly or you lose your logo behind the top rail. A graphic printed to 2280mm on a Corinthian wall leaves a visible strip of black fabric along the bottom.
So: before you order anything, get the exhibitor manual and find the system name. If it isn't in there, ring the stand contractor not the organiser and ask for the infill panel dimensions. This simple act will saves a reprint.
The floor space you actually have
Three metres by three metres is 9sqm on paper. In practice:
- The walls and frame eat about 40–50mm off each side
- A standard counter at 1m wide x 500mm deep takes another chunk, plus a metre behind it for whoever's standing there
- Two staff members standing comfortably need roughly 1.5sqm between them
Which leaves you somewhere near 4 to 5 square metres of genuinely usable space for visitors. That's room for three or four people at once, tops.
The mistake almost everyone makes is filling that space with stuff. A table across the front, a pull-up banner in each corner, a product display in the middle. Every one of those is a barrier, and a booth people can't walk into is a booth people walk past.
Keep the middle open. Put your brand on the walls, where it's visible from thirty metres away, and leave the floor for humans.
Where things go
For a standard 3-wall booth (both sides enclosed), only the back wall does real work. The side walls are barely visible until someone is already standing in front of you, so don't spend much there.
For a corner booth, you've got two open sides and one of them faces down an aisle. That side wall is now doing as much work as the back wall — brand it properly.
Either way, the layout that works:
- Back wall — full-width graphic. One image, one message, logo big. This is your billboard.
- Counter — front third, off to one side. Not centred. Centred blocks the entrance. Off to one side creates a natural walk-in.
- Height — one vertical element. A tower or a flag pulls eyes from across the hall, where a 2.4m wall disappears behind the crowd.
- Floor — nothing. Resist.
Three ways to fill it
Real numbers, all AUD including GST.
Under $600 — cover the back wall
The cheapest thing that works properly. A custom-printed fabric graphic with velcro edges presses straight onto the shell scheme wall the venue already gave you. No frame, no tools, no hex key you left at the office.
- Exhibition Shell Scheme Fabric Graphics — 3000mm x 2400mm, $349
- Custom Printed Table Covers — $149
Total: around $500. It only works at shows where you get the same wall size, and it goes in the bin if the venue's system is different — but for a first show, it's the right call.
$1,500–3,000 — buy something you keep
The step up is a freestanding display that doesn't care what the venue gives you. Same wall every show, every venue, packs into a bag.
- Tension Fabric Media Wall — full kit from $405
- 3x3 U-Shape Fabric Tube Exhibition Stand – Haven — $1,599
- Pop Up Fabric Counter — $499
- Tension Fabric Tower Display — from $656
A full three-wall kit plus counter lands near $2,100. Reprint the fabric skin next year for a fraction of the frame cost and the hardware keeps going.
$4,000+ — light it
In a hall lit flat from the ceiling at the same brightness as every other booth, backlighting is the only thing that reads as different from a distance. Whether it's worth it depends on the show; we've written about when backlit earns its money and when it doesn't.
- 3x3 SEG Backlit Lightbox L-Shape Kit — $4,450
- 3x3 SEG Backlit Lightbox U-Shape Kit — $6,885
- SEG Lightbox Counter — $1,100
Against a $12,000 all-in show cost, a $4,450 display you use for five years is about $890 a show. Against a single show, it's a lot. Do the maths on how many events you've actually got booked.
Five things that go wrong
Ordering graphics before reading the manual. Covered above. The single most common reprint.
Putting the table across the front. It reads as a counter to you and a barrier to everyone else. Move it to one side.
Text below 900mm. Anything in the bottom third of the wall is behind a person's legs the moment the booth is busy. Keep the message in the top two-thirds.
Too many words. Someone walking past gives you three seconds. That's one line and a logo, not a paragraph about your company's history.
Relying on the venue's spotlights. Two spotlights aimed at a fascia sign do nothing for your back wall. Bring your own — a pair of LED spotlights is $149 and makes a printed wall look twice as expensive.
Frequently asked questions
What are the exact dimensions of a 3x3 shell scheme booth in Australia? The footprint is 3m x 3m. Wall height is typically 2.4m, and the usable wall width is around 2990mm because of the frame uprights. Panel widths vary between 950mm and 1000mm depending on which contractor built it. Always confirm against the exhibitor manual for your specific show.
Can I attach graphics directly to the shell scheme walls? On fabric-faced systems, yes — velcro hook tape grips the wall face directly. On laminate infill systems you'll usually need the panel swapped or a graphic that clips into the frame. What you can't do anywhere is nail, screw, drill or use permanent adhesive. Most organisers charge for damage.
How much should I spend on a 3x3 booth display? As a rough guide, 5–10% of your total show cost. If the show is costing you $12,000 all-in, spending $600–$1,200 on the thing every visitor looks at first is proportionate. Spending $200 isn't.
Do I need graphics on all three walls? Rarely. In a standard enclosed booth, only the back wall is visible from the aisle. Corner booths are different — brand both open sides. Save the money on the walls nobody sees.
Will the same graphic work at my next show? Only if the next venue uses the same system at the same size. It often doesn't. If you're doing more than two shows a year, a freestanding display you own is cheaper over time than replacing wall graphics each time.
How long does it take to get made? Ask for your artwork deadline and work backwards from there, not from the show date. Freight into a venue closes days before doors open, and organisers won't accept late deliveries.
Get the size right the first time
Send us your booth number and the show you're exhibiting at. We'll check the stand contractor's specs, tell you the exact size to print, and quote you on the right option for how many shows you've actually got booked — not the biggest one.
