6x3 SEG Backlit Pop Up Straight Exhibition Stand Display Kit

A complete backlit stand on the fastest frame there is

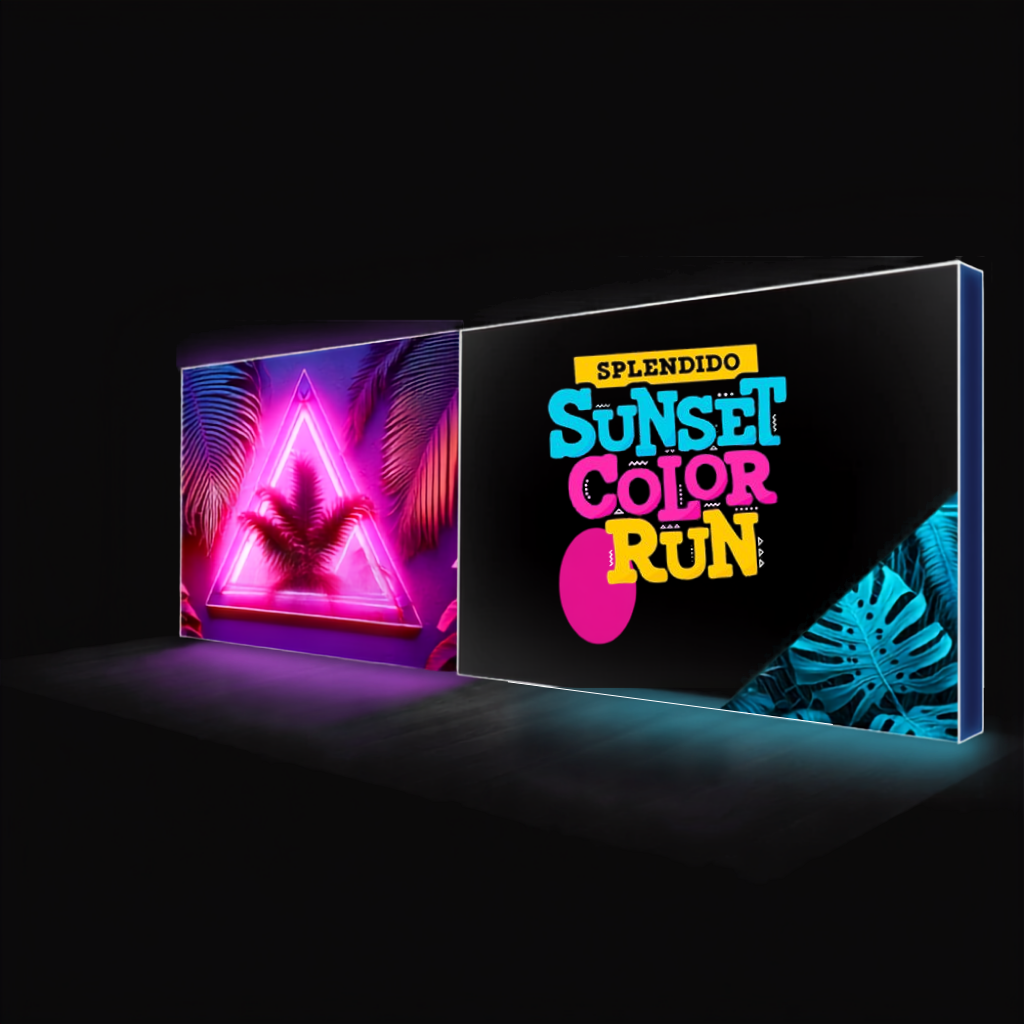

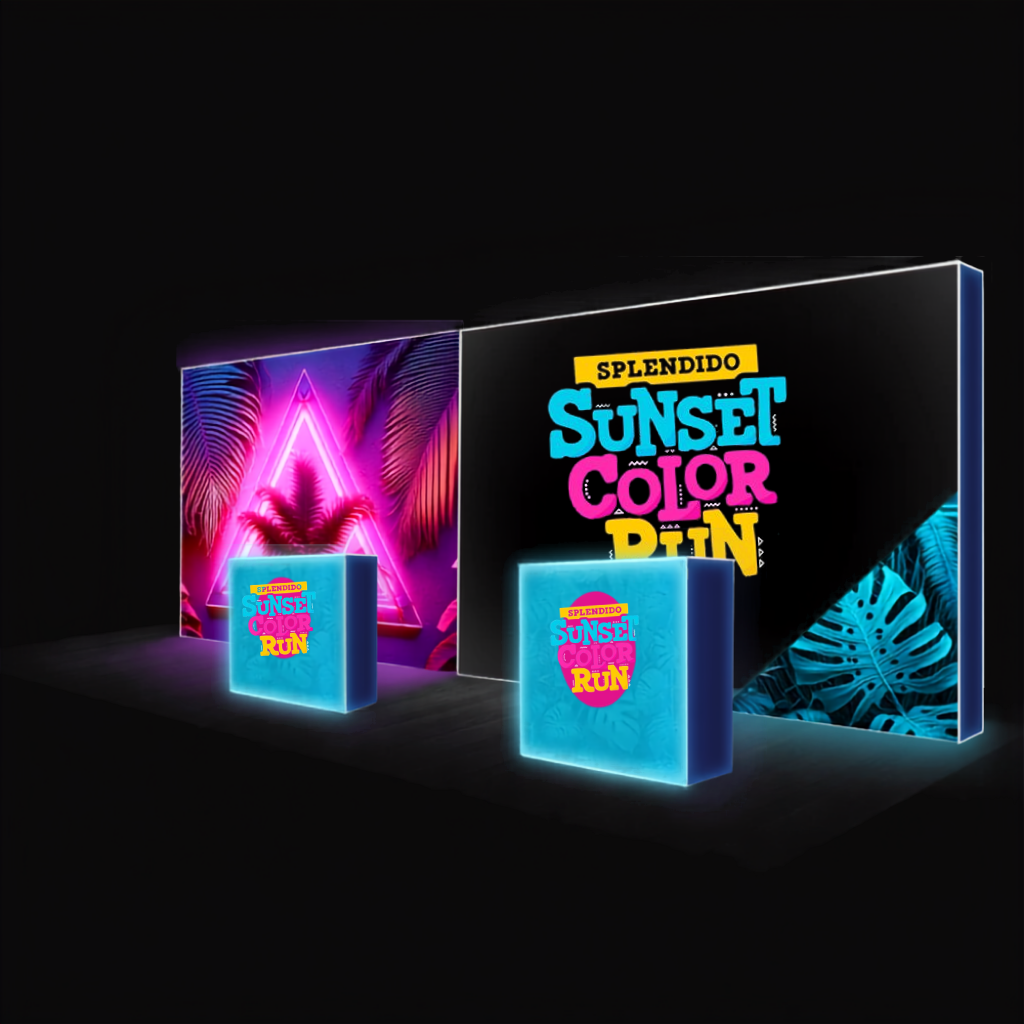

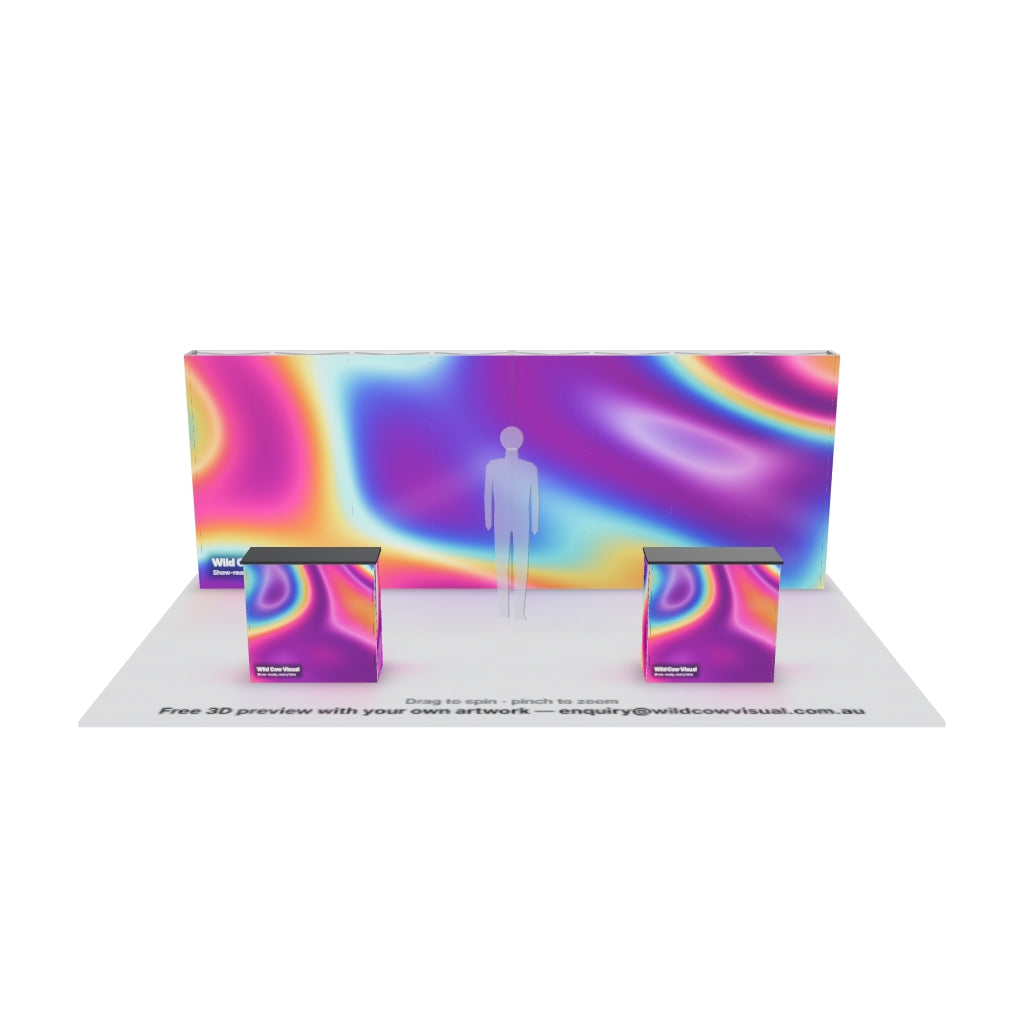

This kit builds a 6m straight backlit wall from two 3m SEG backlit pop up frames joined side by side, and adds two 1m backlit pop up counters in front. Everything lights up, everything is custom printed, and nothing needs tools. It is made for a 6×3m inline booth, where the back wall does the branding and the counters give your team a lit place to work.

Pop up frames, not push-fit poles

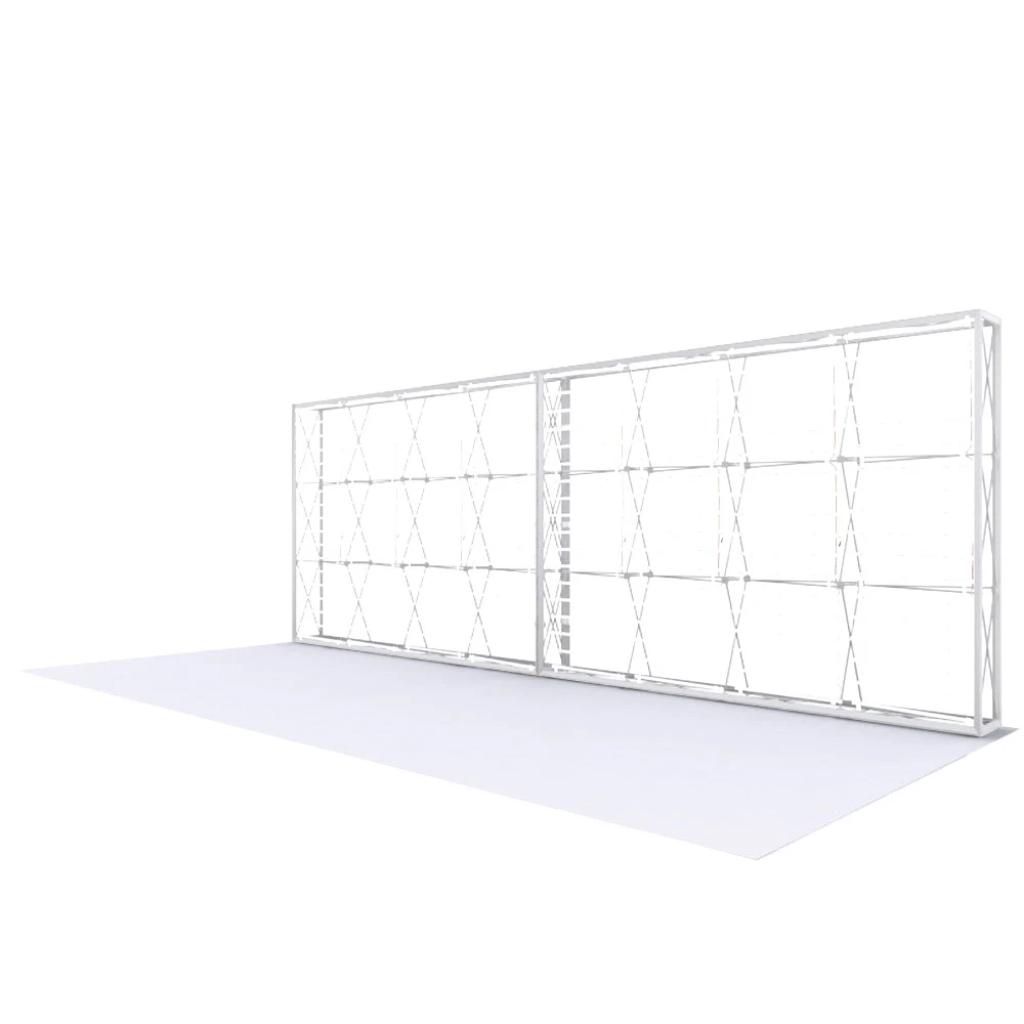

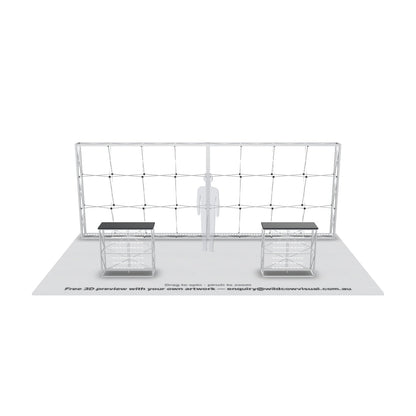

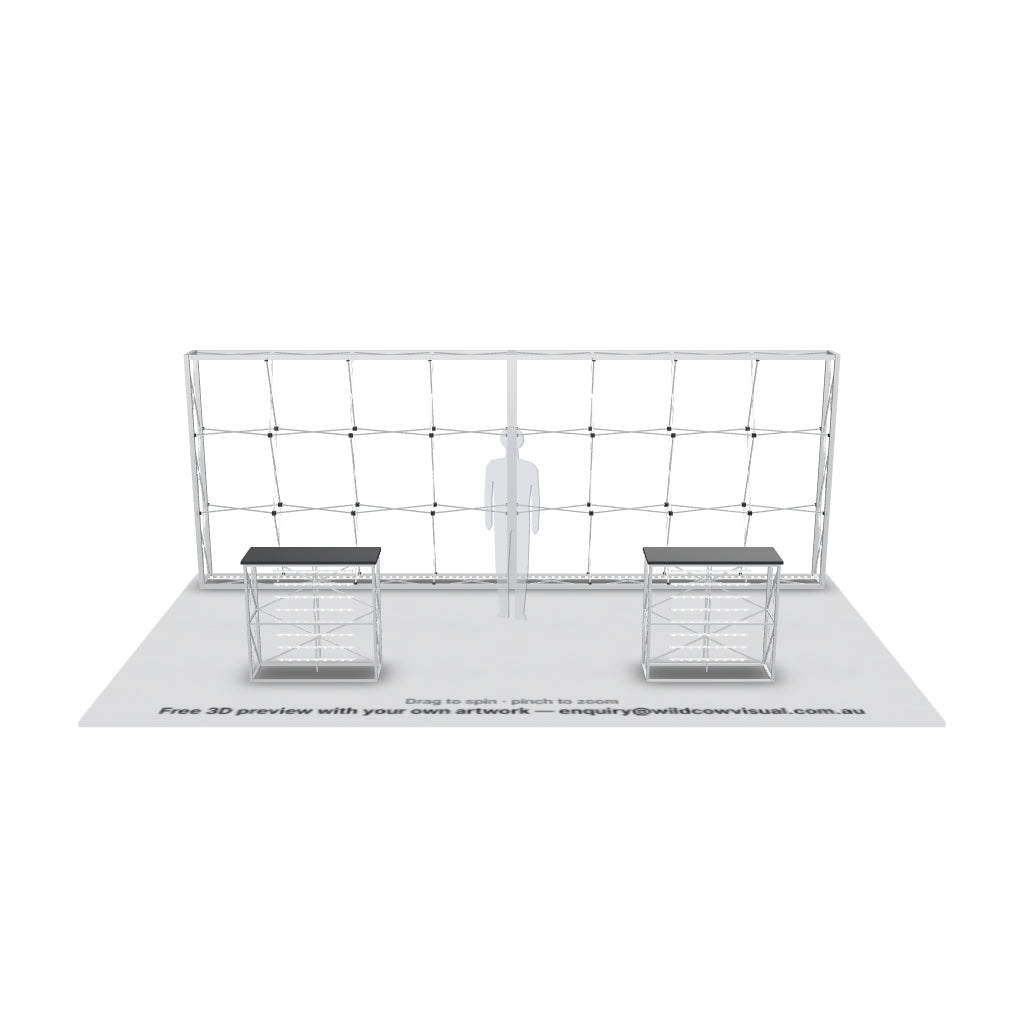

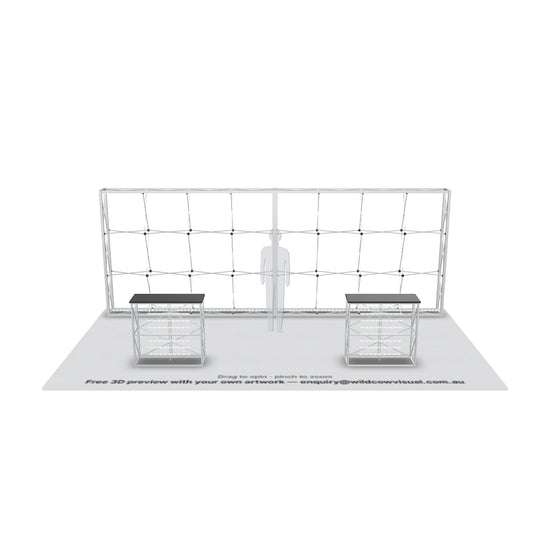

Each wall frame is an aluminium concertina pop up frame. It expands in one movement and locks out, so there are no loose poles to match and join. LED bars mount along the top and bottom, and the printed silicone edge graphics push into the frame channels.

Printed and lit on every face

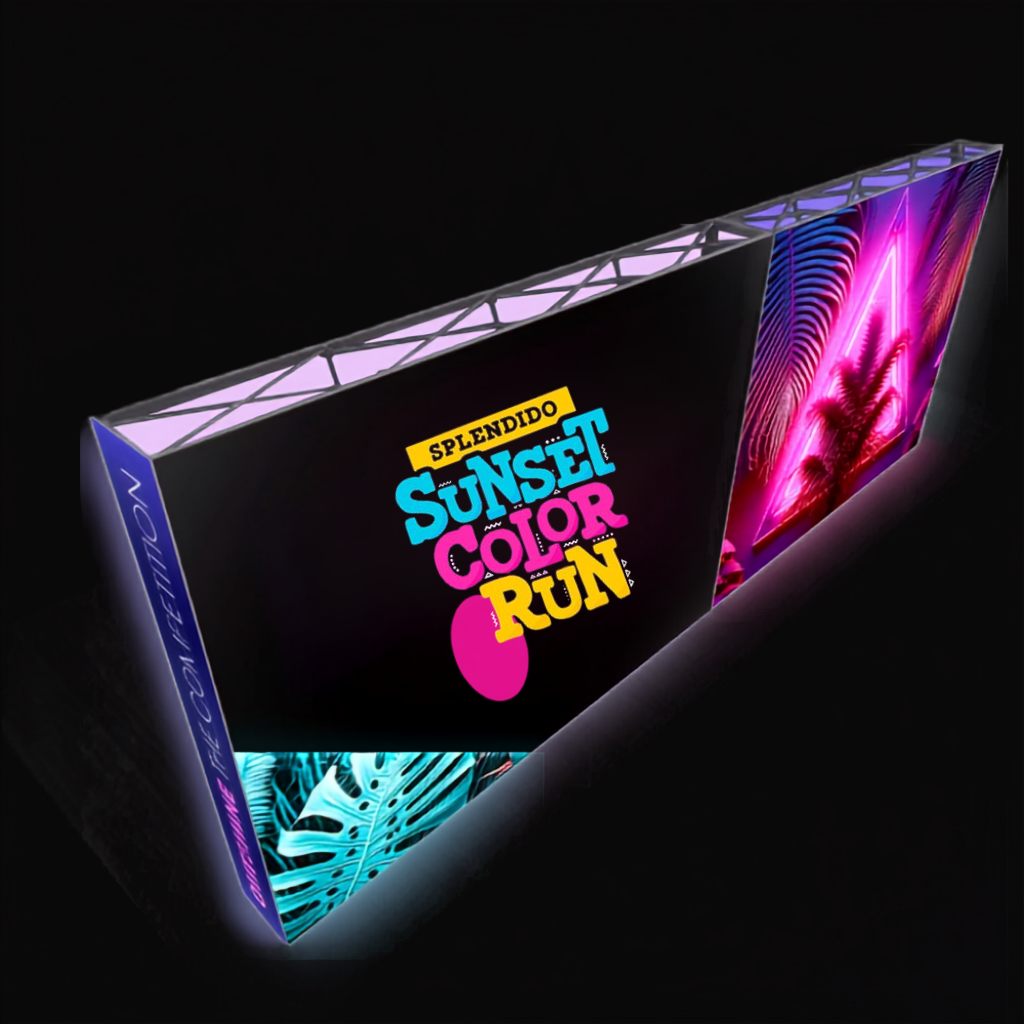

The wall graphics wrap the front, the back and both side returns, so the stand looks finished from any angle — useful if a neighbouring booth is open or the back of your wall faces an aisle. The counters are printed on the front, both sides and the back, with a worktop on top.

6x3 SEG Backlit Pop Up Straight Kit includes:

• 2 x 3m W x 2.25m H SEG backlit pop up wall frames, joined into one 6m wall
• Interlocking connectors to join the two wall frames
• LED bars top and bottom, with 24V drivers
• Printed SEG fabric for the front, back and both side returns of each wall
• 2 x 1m W x 1m H SEG backlit pop up counters with LED lighting
• Printed SEG fabric for each counter (front, sides and back)
• 2 x counter worktops
• Wheeled padded transport cases for the walls and soft carry cases for the counters

Rebrand without buying a new stand

When your campaign changes, keep the frames, lights and cases and order replacement printed fabric only.

Want a corner stand? See the 6x3 Pop Up L-Shape kit. Want the wall on its own? See the SEG Backlit Pop Up Media Wall and the SEG Lightbox Pop Up Counter. Prefer a rigid lightbox kit? Browse all SEG backlit exhibition stand kits. Questions? Call 1300 197 088 or contact us.

What is included in the 6x3 Straight Pop Up Kit?

Two 3m W x 2.25m H SEG backlit pop up wall frames with the interlocking connectors that join them into a 6m straight wall, plus LED bars and drivers, printed fabric on the front, back and both side returns. Two 1m W x 1m H backlit pop up counters with LED lighting, printed fabric and worktops. Transport cases for everything.

What booth does it fit?

A 6×3m inline booth. The wall is 6m wide and 2.25m high, and the frames are approx. 350mm deep, so the counters sit in front with room for your team behind them. Many venues cap wall width slightly under 6m — send us your exhibitor manual and we will check it fits.

What is the difference between this and the SEG backlit lightbox kits?

This kit uses concertina pop up frames that expand in one movement, so it is the fastest backlit stand to set up and pack down. It stands 2.25m high and is printed on both sides as standard. Our SEG backlit lightbox kits use rigid push-fit frames with a 120mm profile and stand 2.4m high — choose those for a more permanent, showroom-style build.

Is it printed on both sides?

Yes, as standard. The wall graphics cover the front, the back and both side returns, and every face is lit. The counters are printed on the front, both sides and the back.

How is it powered — do I need an electrician?

No electrician needed. The walls run on the included 24V drivers and the counters plug into a standard 240V power point. Allow a power point for each wall frame and each counter, and check your booth power allowance with the organiser.

Can I use the wall and counters separately?

Yes. The two wall frames can run as a single 3m wall at a smaller show, and each counter works on its own as a reception or sign-in desk.

How is it transported?

The wall frames fold down and travel in wheeled padded transport cases, included as standard. Each counter packs into its own soft carry case.

Can I change the graphics later?

Yes. The printed fabric is replaceable, so you can rebrand for a new campaign by ordering new fabric and keeping the frames, lights and cases.

Do I get an artwork proof?

Yes. Every graphic is custom printed to your artwork. We send a proof and never print without your approval.

Can it be used outdoors?

No — indoor use only. The LED system and fabric are not built for weather or wind.

What warranty is included?

12 months on the frames and hardware. Printed graphics are excluded.

The 6x3 Straight Pop Up Kit sets up tool-free. Two people make the wall easier to handle. Follow these steps:

1. Unpack the cases. Lay out the two wall frames, LED bars, drivers, counters and your printed fabric.
2. Expand each wall frame. Pull the concertina frame open in one movement and lock it out.
3. Fit the LED bars. Mount the bars along the top and bottom of each frame and connect the drivers.
4. Join the frames. Stand the two frames side by side to form the 6m wall and connect them.
5. Fit the graphics. Press the silicone edge of each printed fabric into the frame channels, working around until the fabric is tight and crease-free.
6. Set up the counters. Expand each counter frame, fit its lighting, press in the fabric and drop the worktop on.
7. Power on. Plug in the walls and counters and switch on.
